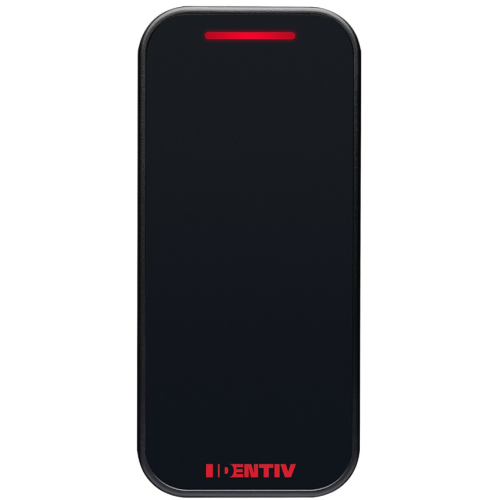

Identiv Primis Access Control Reader 7010ABP-BG
Identiv’s Primis Access Control Reader Model Number 7010ABP-BG Black Gloss Face
Entry-level access control gets you up and running in less than ten minutes. Identiv’s Primis Access Control Readers are secure, flexible, simple to configure, and enhance any access control environment without a costly investment. Primis brings the latest technology to traditional access control systems by supporting both smart card and proximity-based access control credentials. Primis is available in three (3) different finishes (matte black, gloss black, or matte white) granting even greater flexibility to meet the needs of a specific installation. Customers or sites requiring customization can request unique faceplates using the Primis Premiere program, providing greater brand exposure. Plug-and-play Primis is designed to work in the government or commercial space and is ideal for schools, banks, apartment complexes, retail establishments, or any environment that: • Uses multiple credential populations (i.e., proximity and smart card) • Needs to migrate from one credential technology to another • Requires support for single-site, multi-tenant access control systems Easy Migration • Supports high (13.56 MHz) and low (125 kHz) frequency credentials, tags, and fobs • Simple transition from legacy to smart card-based access control credentials Seamless Integration • Based on the industry standard Wiegand protocol • Compatible with most physical access installations Compact Footprint • Mini mullion is ideal for tight space requirements • Easy to install in various environments Custom Options • Designed for use in indoor and outdoor applications • Available in three (3) different color options • Customizable with company branding
Manufacturer Part Number | 7010ABP-BG |
---|---|
Features | Specifications |
Specifications
Model Number
7010ABP-BG (Black Gloss Face)
7010ABP-BM (Black Matte Face)
7010ABP-WM (White Matte Face)
Description Primis Access Control Reader
Carrier Frequencies 13.56 MHz and 125 kHz
Connection Wiegand
Current Consumption (@ 12V)
90mA Average
140mA Peak
Power Supply 5 to 12 VDC
Dimensions
4.0 x 1.9 x .9 in
(10.1 x 4.8 x 2.2 cm)
Product Weight 9.6 oz (272 g)
Housing Material Polycarbonate (UL94)
Operating Temperature -31 to 150°F (-35 to 66°C)
Storage Temperature -31 to 185°F (-35 to 85°C)
Operating Humidity 5% to 85% relative humidity (non-condensing)
Connection Pigtail only
Status Indicator Red and green LED, buzzer
Cable Distance
(22 AWG Wire Gauge)
Wiegand 152 m/500 ft (22 AWG wire)
Low Frequency Compatibility HID® Prox, AWID, Farpointe®, and others
High Frequency Compatibility
PIV, PIV-I, CAC, TWIC, CIV, MIFARE Classic UID, DESFire UID, ISO15693 UID,
ISO14443A/B UID
Certifications FCC, CE, IC, RoHS2, REACH
