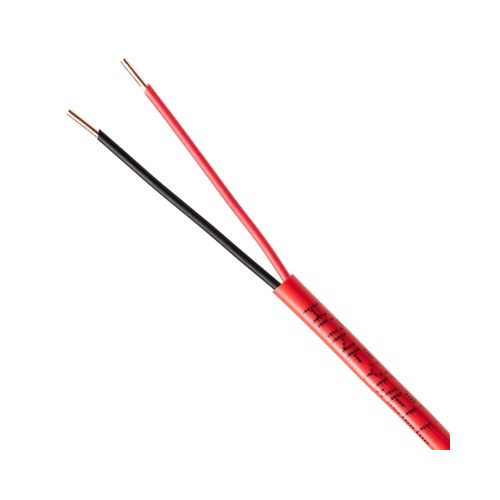

Honeywell Genesis Lightspeed Cable 18/2 SOL JKT FPLP 1M BX RED Plenum

Special Price $111.18 Regular Price $190.00 -41%

Availability: Available for Order

SKU

WG-45061104

Honeywell Genesis Lightspeed Cable 18/2 SOL JKT FPLP 1M BX RED Plenum 18 AWG 2 Solid Conductors Plenum (SLC) Signaling Line Circuit -1000 feet

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Honeywell Genesis Lightspeed Cable 18/2 SOL JKT FPLP 1M BX RED Plenum 18 AWG 2 Solid Conductors Plenum (SLC) Signaling Line Circuit -1000 feet

More Information

More Information
Manufacturer Part Number	45061104
Features	18 AWG 2 Solid Conductors Riser R Part Number: 4306 Ratings FPLR, CL3R, FT4, Sunlight Resistant Approvals UL Listed Construction Conductor Type 18 AWG Solid Bare Copper Conductor Count 2 Insulation Colors Black, Red Insulation Type Polypropylene Insulation Thickness 0.006" nom. Cable Lay Length 2.00" nom. Shielding N/A Rip Cord Yes Jacket Material PVC Jacket Thickness 0.016" nom. Overall Outer Diameter 0.144" nom. Flame Rating UL 1666 (Riser); CSA C22.2 No. 2556 (FT4) Print Legend HONEYWELL P/N 4306 2C 18AWG E175105 (UL) FPLR OR CL3R FT4 SUN RES 75C (RoHS) W/O# XXXXXX- XXXXXXX XXXXFT A B C D E F 1 2 3 4 5 6 7 8 9 Electrical & Environmental Temperature -20°C to 75°C Voltage 300V max. Capacitance 22.8 pF/ft. nom. Impedance 66 Ohms nom. DC Resistance 6.52 Ohms/1000' at 20°C RoHS Compliant Yes

Reviews

Write Your Own Review

Features

18 AWG 2 Solid

Conductors Riser

R

Part Number: 4306

Ratings

FPLR, CL3R, FT4, Sunlight Resistant

Approvals

UL Listed

Construction

Conductor Type

18 AWG Solid Bare Copper

Conductor Count

Insulation Colors

Black, Red

Insulation Type

Polypropylene

Insulation

Thickness

0.006" nom.

Cable

Lay Length

2.00" nom.

Shielding

N/A

Rip Cord

Yes

Jacket Material

PVC

Jacket

Thickness

0.016" nom.

Overall

Outer

Diameter

0.144" nom.

Flame Rating

UL 1666 (Riser); CSA C22.2 No. 2556 (FT4)

Print Legend

HONEYWELL P/N 4306 2C 18AWG E175105 (UL) FPLR OR CL3R FT4 SUN RES 75C (RoHS) W/O#

XXXXXX-

XXXXXXX XXXXFT A B C D E F 1 2 3 4 5 6 7 8 9

Electrical & Environmental

Temperature

-20°C to 75°C

Voltage

300V max.

Capacitance

22.8 pF/ft. nom.

Impedance

66 Ohms nom.

DC Resistance

6.52 Ohms/1000' at 20°C

RoHS Compliant

Yes
