Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

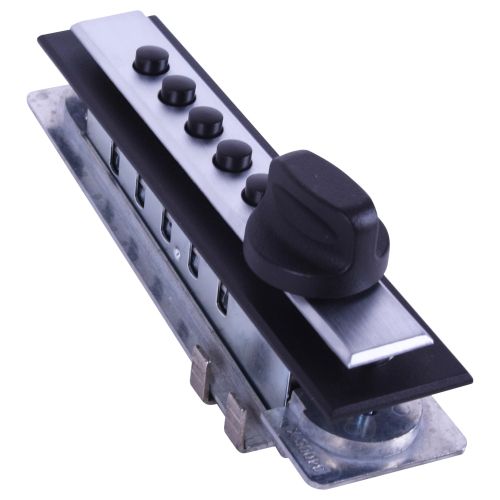

9621C20-26D-41 DormaKaba Integrated and Pushbutton
Regular Price $137.00 -39% Special Price $83.79
Availability: Available for Order
SKU
SIM1009621C2026D41
Cabinet Lock, Wood Application, Cross Throw, Clutch Ball Bearing Knob, With Trim Plate, Standard Deadbolt, Satin Chrome
Description
Speicfications
| Series | Simplex 9600 Series |
|---|---|
| Vendor | DormaKaba |
| Manufacturer | DormaKaba |
| Base Material | Brass or Bronze |
Details
The 9600 Series is specifically designed for cabinet doors, desk drawers, and similar applications.
- Construction: All metal cast face plate; force-resistant, protected exterior knob
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Handing: Non-handed
- Bolt:
- End-throw/cross-throw deadbolt (must be manually relocked)
- End-throw/cross-throw spring latch (with automatic relock)
- Door Thickness:
- Wood doors: ⅝" (16 mm) to ⅞" (22 mm)
- Sheet metal applications: 14 to 20 gauge 1⁄3", 1⁄16", 1⁄4"
- Installation:
- Horizontal or vertical.
- Two-step mortise installation using router or 5½" (140 mm) x 1" (25 mm) slot with trim plate (for wood applications).
- Punched slot or series of 7⁄16" (11 mm) drilled holes (for metal applications).
- Warranty: 1-year warranty
