Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
LL1041R-26D-41 DormaKaba Integrated and Pushbutton
Regular Price $973.00 -44% Special Price $544.88
Availability: 14 available for order
SKU
SIM100LL1041R26D41

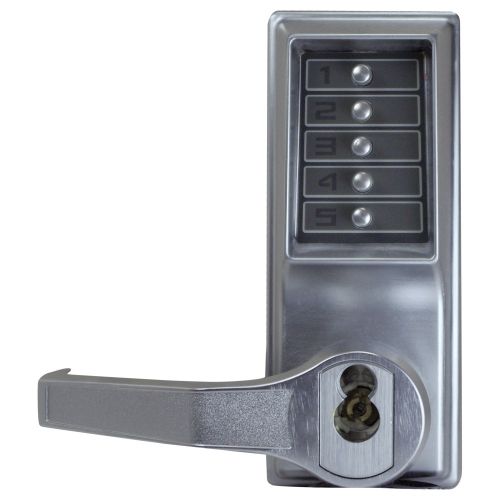

Pushbutton Cylindrical Lever Lock, Combination Entry/Passage Functions with Key Override, 2-3/4" Backset, 1/2" Throw Latch, Sargent LFIC Prep, Less Core, Satin Chrome Finish, Left Hand/Left Hand Reverse
Description
Specifications
| Series | Simplex L1000 Series |
|---|---|
| Vendor | DormaKaba |
| Manufacturer | DormaKaba |
| Base Material | Brass or Bronze |
| Fire Rating | 3 Hours {A} |
| Installation | Commercial |
| Limited Warranty | 3 Years |
| Finish Family | Matte Silver |
| Cylinder Type | Sargent LFIC Less Core |
| Keypad Type | Mechanical |
| Handing | Left Hand/Left Hand Reverse |
| Latch Backset Dimension | 2-3/4" |
| Lever/Knob Design Family | Curved Return Lever |
| Lock Platform | Cylindrical Lock with Keypad Trim |
| Door Thickness | 1-3/8" to 2-1/4" |
| Function | 4 - Cylindrical Lock, Combination Entry, Key Override, and Passage |
| Series Name | Simplex |
| Std. Strike Type | ASA |
Details
Eliminates the material and labor expense of battery replacements and has a single access-code.
- Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
- Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
- Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Handing: Factory-handed; not field reversible
- Backset: 2¾" (70 mm), 2⅜" (60 mm)
- Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
- Minimum Stile Recommended: 5" (127 mm)
- Strike: Standard strike plate; ASA strike plate
- Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
- Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
- Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
- Warranty: 3-year warranty
