Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
LLP1020S-26D-41 DormaKaba Integrated and Pushbutton
Regular Price $1,032.00 -44% Special Price $577.92
Availability: 19 available for order
SKU
SIM100LLP1020S26D41

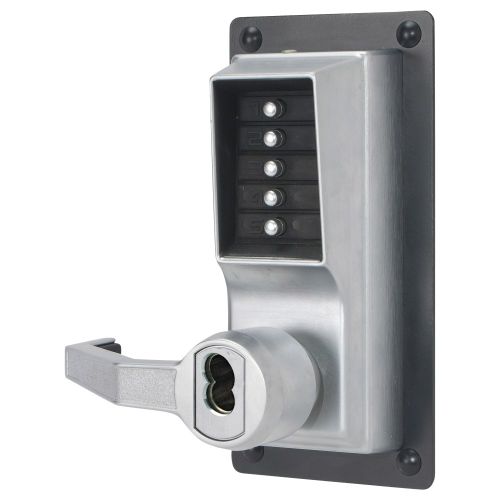

Exit Trim Lever Lock, Combination and Key Override, Left Hand Reverse, Schlage FSIC Prep, Less Core, Satin Chrome
Description
Specifications
| Series | Simplex LP1000 Series |
|---|---|
| Vendor | DormaKaba |
| Manufacturer | DormaKaba |
| Base Material | Brass or Bronze |
| Installation | Commercial |
| Finish Family | Matte Silver |
| Cylinder Type | Schlage FSIC Less Core |
| Lock Platform | Exit Device Trim, Rim with Keypad |
| Series Name | Simplex |
Details
Eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.
- Construction: Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Handing: Factory-handed; not field reversible
- Exit Device Strike: Supplied with Exit Device
- Tailpiece:
- 2¾" (70 mm) tailpiece for Exit Device operation from outside
- Optional 5" (125 mm) tailpiece for freezer doors (sold separately, part # 74773-000-01)
- Minimum Stile Recommended: 5" (127 mm)
- Weight: 8 lbs. (3.6 kg)
- Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
- Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
- Door Preparation: Recessed through bolts may be required for Exit Device preparation
- Door Thickness:
- 1⅜" (35 mm) to 2¼" (57 mm)
- Optional 5" (127 mm) tailpiece (sold separately, part # 74773-000-01)
- Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant lever
- Durability: Weather resistant
- Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
- Warranty: 3-year warranty
