Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

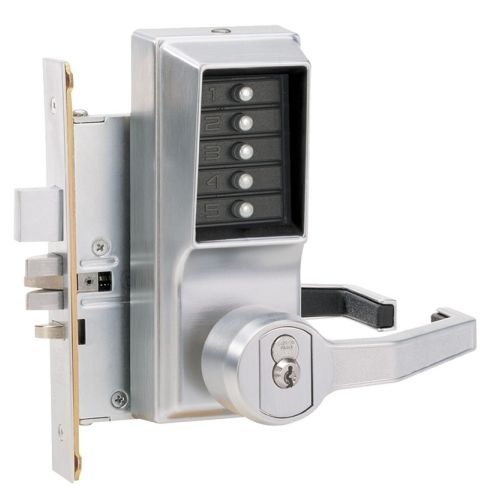

RR8148B-26D-41 DormaKaba Integrated and Pushbutton
Regular Price $1,127.00 -44% Special Price $631.12
Availability: 6 available for order
SKU
SIM100RR8148B26D41
Mortise Combination Lever Lock, Key Override, Passage, Lockout, with Deadbolt, 6/7-Pin SFIC Prep, Less Core, Satin Chrome
Description
Specifications
| Series | Simplex 8100 Series |
|---|---|
| Vendor | DormaKaba |
| Manufacturer | DormaKaba |
| Base Material | Brass or Bronze |
| Installation | Commercial |
| Finish Family | Matte Silver |
| Cylinder Type | SFIC Prep Less Core |
| Lock Platform | Mortise Lock with Keypad Trim |
| Series Name | Simplex |
Details
Provides exterior access by combination, while allowing free egress.
- Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Backset: 2¾" (70 mm)
- Latch: ¾" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
- Minimum Stile Recommended: 5" (127 mm)
- Strike: 4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate
- Key Override
- Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
- Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
- Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
- Door Thickness: 1¾" (44 mm) to 2¼" (57 mm)
- Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
- Durability: Weather resistant
- Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
- Warranty: 3-year warranty
