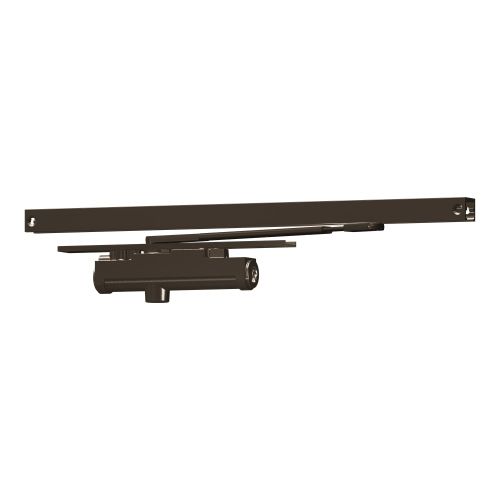

The 3130 Series is a concealed door closer designed to nount in a 1-3/4 in. interior door. The single lever arm and roller assembly provides complete concealment and the choice of finishes and track functions meet virtually all architectural requirements.
3133-STD LH 695 LCN Door Closers and Operator
Regular Price $910.00 -44% Special Price $509.60
Availability: 12 available for order
SKU
LCN1003133STDLHDKBRZ
Standard Track Door Closer, Left Hand, Dark Bronze
Description
Specifications
| Series | 3130 Series Concealed Closers |
|---|---|
| Vendor | Allegion |
| Manufacturer | LCN |
| Color | Dark Bronze Painted |
| BAA Qualified | Yes |
| Base Material | Varies |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 15 Years |
| Finish Family | Dark Bronze |
| Degree Swing | 140 Deg. |
| Handing | Left-Handed |
| Hold Open | No |
| Mounting Group | Hydraulic |
| Mounting Location | Door |
| Type | Concealed Door |
Details
The 3130 Series is a concealed closer designed to mount in a 1 3/4" interior door.
- Standard 3130 series closer shipped with standard arm, standard track and wood and machine screw pack
- Sized cylinders for interior doors to 3’2”
- Handed for right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coated finish
- Optional plated finish on arm and fasteners
- Optional SRI primer for installations in corrosive conditions
- Consult factory for installation with pivots
The single lever arm and roller assembly of the LCN 3130 Series provides complete concealment and the choice of finishes and track functions meet virtually all architectural requirements.
