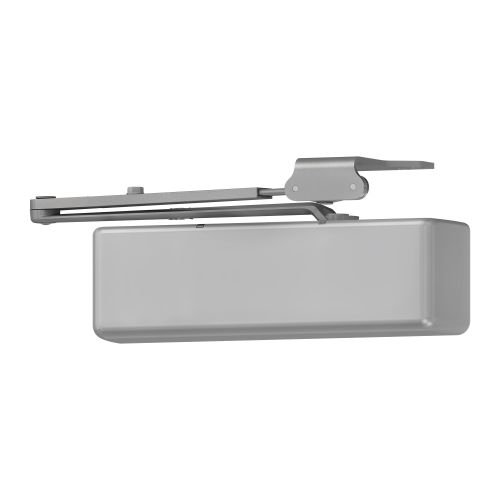

4040XP-RW/PA 689 LCN Door Closers and Operator

Regular Price $838.00 -49% Special Price $429.89

Availability: 3802 available for order

SKU

LCN1004040XPRwPAAL

Grade 1 Surface Door Closer, Regular Arm, PA Shoe, Push or Pull Side Mounting, 120 Degree Swing, Adjustable Size 1-6, Plastic Cover, Aluminum Painted Finish, Non-Handed

Description

LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.

Speicfications

More Information
Series	4040XP Series Surface Mounted Closers
Vendor	Allegion
Manufacturer	LCN
Color	Aluminum Painted
ANSI	A156.4
BAA Qualified	Yes
Base Material	Varies
Fire Rating	3 Hours {A}
Grade	Grade 1
Installation	Commercial
Limited Warranty	30 Years
Origin	USA
Finish Family	Matte Silver
Arm Type	Regular Arm
Back Check	Adjustable
Closer Size	1 to 6
Cover	Plastic
Degree Swing	120 Deg.
Handing	Non-Handed
Hold Open	No
Mounting Group	Hydraulic
Mounting Location	Push or Pull Side
Mounting Style	Tri Mount
Screw Type	Self-Tapping
Through Bolts	No
Type	Surface
UL Listing	UL 10C

Details

Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.

44% increased bearing load capacity
Strongest pinion ever, at 3/4" journal diameter
Widest bearing ever, at 5/8"
Stronger pinion teeth
New V-shield™ seal with 20% longer life
XP = eXtra Protection in real world applications
Cast Iron
Forged Steel Arm
Double Heat Treated Steel Pinion
All Weather Fluid
Non-Handed
LCN® Fast™ Power Adjust
Fast & Accurate Installation
UL & cUL Listed
Tested and certified under ANSI Standard A156.4, grade one
Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4'0"
Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
Closers to meet ADA requirements
Standard or optional custom powder coat finish
Optional plated finish on metal cover, arm and fasteners
Optional SRI primer for installations in corrosive conditions is available with powder coat only
UL and cUL listed for self-closing doors without hold-open
4040XP can be used with all 4040 accessories

The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCN built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
