The 6030 Series Pacer is a concealed heavy duty double acting door closer designed to fit in a narrow header with 1-3/4 In. minimum clearance. The single lever arm and roller assembly provides smooth, quiet door control.
6033-H BUMPER 689 LCN Door Closers and Operator
Regular Price $2,221.00 -44% Special Price $1,243.76
Availability: 19 available for order
SKU
LCN1006033HBUMPERAL

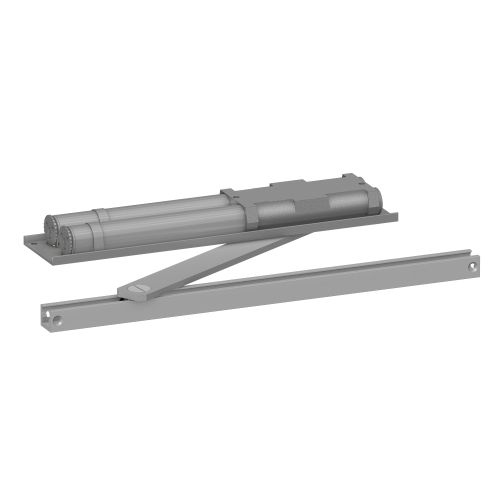

Concealed Doubla Acting Track Door Closer with Hold Open and Bumper, Size 3, Aluminum
Description
Specifications
| Series | 6030 Series Concealed Closers |
|---|---|
| Vendor | Allegion |
| Manufacturer | LCN |
| Color | Aluminum Painted |
| BAA Qualified | Yes |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 15 Years |
| Finish Family | Matte Silver |
| Degree Swing | 95 Deg. |
| Handing | Non-Handed |
| Hold Open | Yes |
| Mounting Group | Hydraulic |
| Mounting Location | Header |
| Type | Concealed Overhead |
Details
LCN's 6030 Series is a heavy duty, double acting closer designed to fit a narrow transom.
- Standard 6030 series closer shipped with standard arm, standard track with bumper, mounting/finish plate and wood and machine screw pack
- Sized, double acting cylinders for interior doors to 4’6” and exterior doors to 3’6”
- Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
- Closers to meet ADA requirements
- Adjustment of spring power and latch speed independent for either swing
- Backcheck and general speed adjustment are common for both swings
- Standard or optional custom powder coat finish
- Optional plated finish on arm, fasteners and mounting/finish plate
- Optional SRI primer for installations in corrosive conditions
The single lever arm and roller assembly of the 6030 Series provides smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements. Installation at left illustrated with center pivot set (not included).
