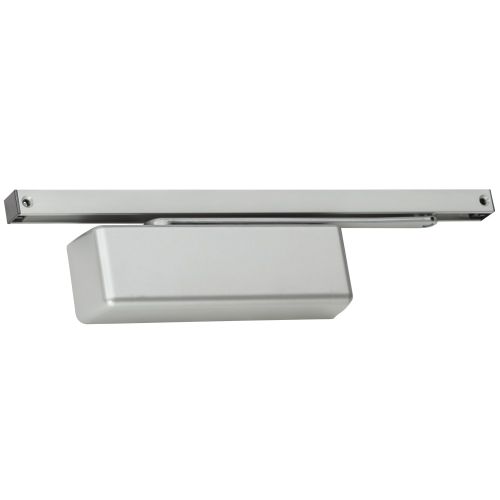

4011T-STD RH 689 LCN Door Closers and Operator

The 4010T is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

• The 4010 Series mounts hinge pull side.
• Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”.
• Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”.
• Closer mounts hinge side, specify right or left swinging door.
• Corner brackets available. See Options tab for options.
• 4011 cylinder meets ADA requirements.
• Standard or optional custom powder coat finish.
• Optional plated finish on metal cover, arm and fasteners.
• Optional SRI primer for installations in corrosive conditions is available with powder coat only.
• The 4010 Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
• Tested and certified under ANSI Standard A156.4, Grade 1.

The 4010, 4020 and 4110 Series are heavy-duty closers that meet demands for high-traffic installations and each are designed specifically for unique mounting applications. They are UL and cUL listed, meet ANSI/BHMA Grade 1 standards and boast 30-year warranties. They feature a standard plastic cover, with optional plated finishes for the cover, arm and fasteners. They also feature the LCN Green Dial spring force indicator, which takes the guesswork out of adjustment.
