4040SEH 120V 689 LCN Door Closers and Operator

Regular Price $856.00 -40% Special Price $513.27

Availability: Available for Order

SKU

LCN1004040SEH120VAL

Notify me when the price drops

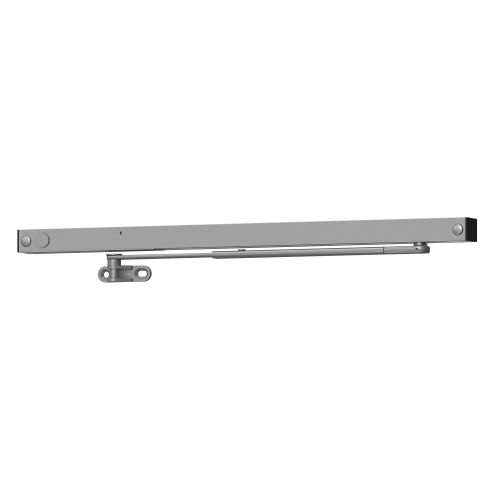

4040SEH Series Hinge Side Mount Holder Track and Arm, 120V, Aluminum Painted Finish, Non-Handed

Description

The 4040SE Sentronic is a heavy duty, non-handed, non-sized closer/holder designed to provide single point hold open for fire and smoke barrier doors. The door is held open until current interruption releases the holding mechanism and closes the door. The single lever track arm is designed for interior doors.

Speicfications

More Information
Series	4040SE Series Fire/Life Safety Closers/Holders
Vendor	Allegion
Manufacturer	LCN
Color	Aluminum Painted
ANSI	A156.15
BAA Qualified	Yes
Base Material	Varies
Grade	Grade 1
Installation	Commercial
Limited Warranty	2 Years

Details

Heavy duty, non-handed and non-sized, designed to provide a single point hold-open for fire and smoke barrier doors.

Standard 4040SE series closer shipped with a standard arm, 24V or 120V (please specify) SE track, standard cover, and wood and machine screw pack. SEL tracks are optional.
Non-sized cylinders for interior doors to 4'0".
Hold-open force is adjustable.
Momentary on/off switch board assembly for testing door release also provides over-voltage protection. Field replaceable.
Functions as a full rack and pinion closer when hold-open is not engaged or current is interrupted.
Closer mounts on either push or pull side of the door.
Non-handed for mounting on either right or left hand door.
Concealed or surface wiring.
Interfaces with alarm systems. Consult factory for full details.
Standard or optional custom powder coated finishes on cover and arm.
Optional plated finishes

The door is held open until current interruption releases the holding mechanism and the door closes.

Instructions

Catalogs

LCN Fire and Life Safety Closers and Holders Catalog
