The 4110 is LCN's best performing parallel arm mounted heavy duty surface door closer designed for institutional and other high traffic applications.

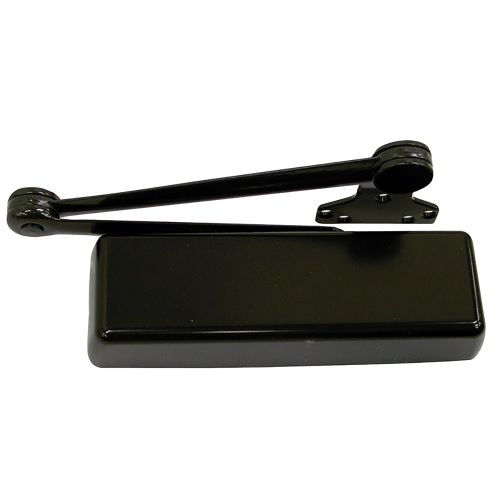

4111-EDA RH 695 LCN Door Closers and Operator
Regular Price $814.00 -46% Special Price $437.61
Availability: 16 available for order
SKU
LCN1004111EDARHDKBRZ
Grade 1 Surface Door Closer, Extra Duty Arm, Push Side Parallel Arm Mounting, 180 Deg. Swing, Size 1 to 5, Full Plastic Cover, Dark Bronze Finish, Right-Handed
Description
Specifications
| Series | 4110 Series Surface Mounted Closers |
|---|---|
| Vendor | Allegion |
| Manufacturer | LCN |
| Color | Dark Bronze Painted |
| ANSI | A156.4 |
| BAA Qualified | Yes |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 30 Years |
| Finish Family | Dark Bronze |
| Arm Type | Extra Duty Arm |
| Back Check | 75 Deg. |
| Closer Size | 1 to 5 |
| Cover | Full Plastic |
| Degree Swing | 180 Deg. |
| Handing | Right-Handed |
| Hold Open | No |
| Mounting Group | Hydraulic |
| Mounting Location | Push Side |
| Mounting Style | Parallel Arm |
| Type | Surface |
| UL Listing | UL Listed |
Details
The 4110 Series is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.
- Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
- Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
- Closer mounts parallel arm, specify right or left swinging door
- 4111 cylinder meets ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- The 4110 Series is UL and cUL listed for self-closing doors without holdopen
- Tested and certified under ANSI Standard A156.4, grade one
The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.
Instructions
- LCN 4110 Peel-N-Stick Installation Guide
- LCN 4110 Peel-N-Stick CUSH Installation Guide
- LCN 4110 Drop Plates Installation Guide
- LCN 4010, 4020 & 4110 Door Closer w/ Fusible Link Arm Installation Guide
- LCN Drop Plates Installation Guide for 4110, 4110 CUSH, 4210, 4210 CUSH, 4110T, 4210T
- LCN Closers & Auto Operators Installation Guide
