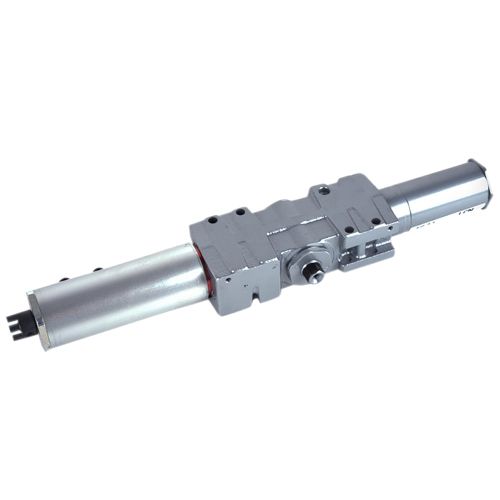

Cylinder Only, Aluminum
4631-3971 689 LCN Door Closers and Operator
Regular Price $3,127.00 -51% Special Price $1,540.99
Availability: 22 available for order
SKU
LCN10046313971AL
Cylinder Only, Aluminum
Description
Specifications
| Series | 4630 Series Electrohydraulic Operators |
|---|---|
| Vendor | Allegion |
| Manufacturer | LCN |
| Color | Aluminum Painted |
| BAA Qualified | Yes |
| Installation | Commercial |
| Limited Warranty | 2 Years |
| Finish Family | Matte Silver |
| Handing | Non-Handed |
| Mounting Group | Electrohydraulic |
| Mounting Location | Pull Side |
| Mounting Style | Slide Track |
| Type | Surface |
Details
The 4630 Series is a smart and reliable electrically low-energy power operator.
- Standard, top jamb (pull side) mounted 4630 series closer shipped with single lever (standard) arm, metal cover, standard track, and wood and machine screw pack. Actuators available separately, see pages 199-215 of the Catalog
- Meets ADA requirements (power mode).
- Non-sized cylinders for interior doors to 4’0” and exterior doors to 3’0”.
- Non-handed for either right or left swinging door.
- 4630 has easily accessible switches to provide on/off and continuous hold open functions. 4630CS provides concealed on/off power switch. Control module provides all timing and sequential door functions, electric strike controls and adjustments for opening speed and force.
- Standard or optional custom powder coated finish, end caps are black.
- Optional plated finish on cover, arm, and fasteners.
The 4630 Series has a digital control box and is designed for manual opening applications that occasionally require automatic opening. This series provides easy access for people with disabilities, the elderly, or the frail.
