LifeSafety Power FPO150-C8E1 Power Supply With 230 V AC Input Voltage

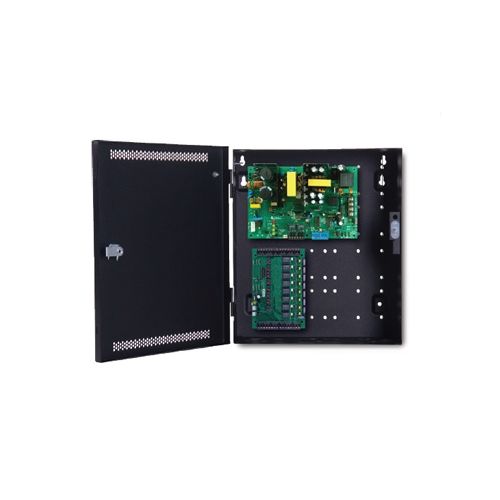

The FLEXPOWER FPO150-C8E1 is a single voltage, offline switch mode power supply-battery charger system specifically designed for the access control segment of the life safety industry. The unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space, and provides one power supply which can be set to 12 or 24V. Eight access-controlled trigger inputs control eight relay-based lock outputs, with each output programmable for fire alarm disconnect, failsafe, fail secure, or dry contact operation. Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and power supply status.
| Manufacturer Part Number | FPO150-C8E1 |
|---|---|
| Features | BENEFITS Agency Listed for Access Control, Fire, Security, CCTV, and Mass Notification FlexPower ® Feature Set • SureCharge Microprocessor controlled battery charging • PowerCom Power supply programming / monitoring software • VSelect Installer selectable output voltage • TruWatt Delivers twice the current at 12V than at 24V • PwrHealth Intelligent battery charging and battery state monitoring • FlexConnect Dual voltage bus / pre-wired accessory board interconnects • Reliability+ Full fault protection / high efficiency / fiberglass pcb • GreenSmart RoHS compliant, lead free, energy efficient design • DataLink Network communication interface option System Features • Fully modular power management system • Multiple outputs for system power, direct lock control and accessory power distribution modules • Each distributed output is selectable for either continuous or switched DC in single voltage systems, or 12/24VDC in dual voltage systems • Fire alarm interface for egress lock control (FAI) • Configurable fail-safe / fail-secure modes of operation • Comprehensive fault detection and reporting including optional earth ground and battery presence • AC and System fault output relays can be delayed via PowerCom • Microprocessor dual rate charging restores battery sets from 4 to 80Ah Power Management & Reporting (U.S. Patent 8,566,651) • PowerCom® s/w monitors, programs, and reports on power supply core functions through a computer USB or network connection • NetLink module option connects power system to a LAN/WAN network for remote programming and live diagnostics. NetLink monitors and reports power status, tests battery state and alerts via email/SNMP on system faults, AC loss, low battery, or pre-scheduled service due Lifetime Warranty
|
BENEFITS
Agency Listed for Access Control, Fire, Security, CCTV, and Mass Notification
FlexPower ® Feature Set
• SureCharge Microprocessor controlled battery charging
• PowerCom Power supply programming / monitoring software
• VSelect Installer selectable output voltage
• TruWatt Delivers twice the current at 12V than at 24V
• PwrHealth Intelligent battery charging and battery state monitoring
• FlexConnect Dual voltage bus / pre-wired accessory board interconnects
• Reliability+ Full fault protection / high efficiency / fiberglass pcb
• GreenSmart RoHS compliant, lead free, energy efficient design
• DataLink Network communication interface option
System Features
• Fully modular power management system
• Multiple outputs for system power, direct lock control and
accessory power distribution modules
• Each distributed output is selectable for either continuous or switched
DC in single voltage systems, or 12/24VDC in dual voltage systems
• Fire alarm interface for egress lock control (FAI)
• Configurable fail-safe / fail-secure modes of operation
• Comprehensive fault detection and reporting including optional
earth ground and battery presence
• AC and System fault output relays can be delayed via PowerCom
• Microprocessor dual rate charging restores battery sets from 4 to 80Ah
Power Management & Reporting (U.S. Patent 8,566,651)
• PowerCom® s/w monitors, programs, and reports on power supply
core functions through a computer USB or network connection
• NetLink module option connects power system to a LAN/WAN network
for remote programming and live diagnostics. NetLink monitors and
reports power status, tests battery state and alerts via email/SNMP on
system faults, AC loss, low battery, or pre-scheduled service due
Lifetime Warranty
