LifeSafety Power FPO75-E1 75W, 6A/12V or 3A/24V Power Management System

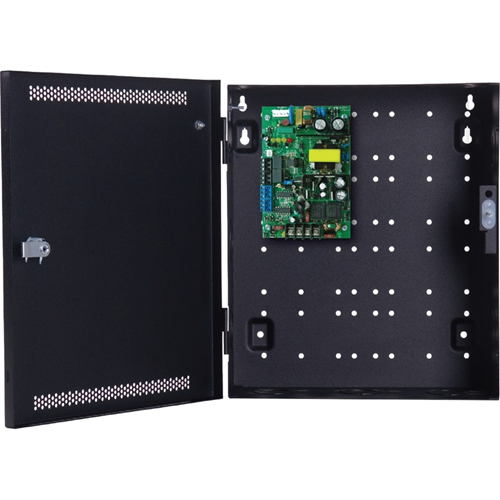

The FLEXPOWER FPO75-E1 is an offline switchmode power supply-battery charger specifically designed for the lifesafety industry. Capable of providing two power outputs, user selectable for 12 or 24 VDC, the unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space. One output provides continuous output power for system use, the second is programmable for either fail-safe or fail-secure operation, activated when the fire alarm disconnect is initiated. Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and current power supply status.
| Manufacturer Part Number | FPO75-E1 |
|---|---|
| Features | Agency Listed for Access Control, Fire, Security, CCTV, and Mass Notification FlexPower ® Feature Set
System Features
earth ground and battery presence
Power Management & Reporting (U.S. Patent 8,566,651)
core functions through a computer USB or network connection
system diagnostics using the DL1 USB cable and a computer laptop
for remote programming and live diagnostics. NetLink monitors and reports power status, tests battery state and alerts via email/SNMP on system faults, AC loss, low battery or pre-scheduled service due |
Agency Listed for Access Control, Fire, Security, CCTV, and Mass Notification
FlexPower ® Feature Set
- SureCharge Microprocessor controlled battery charging
- PowerCom Power supply programming / monitoring software
- VSelect Installer selectable output voltage
- TruWatt Delivers twice the current at 12V than at 24V
- PwrHealth Intelligent battery charging and battery state monitoring
- FlexConnect Dual voltage bus / pre-wired accesory board interconnects
- Reliability+ Full fault protection / high efficiency / fiberglass pcb
- GreenSmart RoHS compliant, lead free, energy efficient design
- DataLink Network communication interface option
System Features
- Fully modular power management system
- Multiple outputs for system power, direct lock control and accessory power distribution modules
- Fire alarm interface for egress lock control (FAI)
- Configurable fail-safe / fail-secure modes of operation
- Comprehensive fault detection and reporting including optional
earth ground and battery presence
- AC and System fault output relays can be delayed via PowerCom
- Microprocessor dual rate charging restores battery sets from 4 to
- 40 amphours
Power Management & Reporting (U.S. Patent 8,566,651)
- PowerCom® s/w monitors, programs, and reports on power supply
core functions through a computer USB or network connection
- Service personnel can perform onsite power supply programming and
system diagnostics using the DL1 USB cable and a computer laptop
- NetLink module option connects power system to a LAN/WAN network
for remote programming and live diagnostics. NetLink monitors and
reports power status, tests battery state and alerts via email/SNMP on
system faults, AC loss, low battery or pre-scheduled service due
