LINEAR AE-100

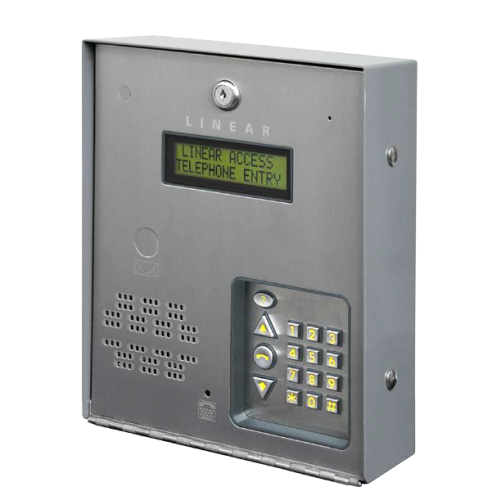

The Model AE-100 Commercial Telephone Entry System – One Door is designed for use as a primary access control device for apartments, condominiums, and offices with up to 125 residents.
The system can be used in a lobby or outside. Surface, recessed, and pedestal mounting options are supported. The system utilizes hands-free, full duplex telephone communications between visitors and residents for granting access.
Housed in a locked, rugged stainless steel faced enclosure, the AE-100 features a lighted 12-key telephone style keypad and four operation buttons all with bright, easy-to-see graphics. The backlit two-line directory LCD display scrolls a programmable welcome message and shows the directory Names and Directory Codes.
The system contains a built-in microphone, tamper resistant speaker, and a TTY connector for the hearing impaired. The heavy duty access relay can control electric door strikes, magnetic locks, door & gate operators, or barrier gates.
Multi-lingual display programming prompts and voice help is available with a choice of English, Spanish, French-Canadian, or Portuguese language selection for the system. The system can be programmed locally using the keypad, or remotely with a touch tone telephone.
Up to four AE-100 units can be connected to the same dedicated telephone line to form a simple network. Connecting multiple units allows transferring programming data (either the directory entries only or the entire memory’s contents) from the “master” unit to the other sub-units.
Optional features that the AE-100 supports are provisions for postal lock and color CCTV camera installation (Model CCM-1A).
The AE-100 is powered from a 16 VAC plug-in transformer and supports an internal rechargeable 1.2 amp/hour backup battery (not included). The battery charging circuit will support an external backup battery with up to 7 amp/hour capacity.
Manufacturer Part Number | AE-100 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Features | Features
User Manual
|
Features
- Many installation choices: surface, recessed, gooseneck
- Stainless steel front panel
- Telephone style keypad with lighting
- Accepts a total of 125 directory listings or stand-alone entry codes
- TTY jack for connection to text communication devices for the hearing impaired
- Simple network capability with up to four units – allows transferring programming data from “master” unit to other sub-units
- Two-line-16-character LCD display
- Removable terminal blocks
- Form “C” access relay rated at 10 amps AC and 7 amps DC @ 30 volts
- Load shed circuitry protects backup battery
- 9.75″ W x 11.75″ H x 3.5″ D
AE-100 | |
---|---|
PROGRAMMING
|
|
Telephone Entry: | Over 30 programmable parameters, including directory code length, display messages, and languages |
OUTPUTS
|
|
Access Relay: | 10-amp AC/7-amp DC @30 Volts AC/DC ratings; normally open and normally closed contacts |
DISPLAY
|
|
Front Panel: | LCD technology, 2 lines by 16 characters, 0.3″ height |
Keypad Lighting: | Illuminated LED lighting for the front panel keypad |
ELECTRICAL
|
|
Input: | 16 VAC from supplied plug-in transformer |
Current Consumption: | <200 mA idle, <500 MA operating |
Back-up Battery: | Built-in charger with up to 7 A/H battery capacity |
Dialing: | DTMF |
ENVIRONMENTAL
|
|
Temperature: | -22° to +149°F (-30° to +65°C) |
Humidity: | 5% to 95% non-condensing |
Memory: | 125 directory or personal entry codes; all data is stored in non-volatile memory |
Connections | Wire connections via removable terminal blocks |
Enclosure | 16-gauge powder coated steel cabinet; 22-gauge brushed stainless steel front panel |
STANDARD EQUIPMENT
|
|
AE-100 Telephone Entry System: | Integral keypad, display, speakers, and microphone; surface or flush mounting, indoors or outdoors |
DIMENSIONS
|
|
Case: | 9.75″ W x 11.75″ H x 3.5″ D (248 x 298 x 89 mm) |
Optional Trim Ring Mounting Hole Size: | 10″ W x 12″ H (254 x 305 mm) |
User Manual
Installation Manual
Literature
Accessories for use with the AE-100 | |
---|---|
Model | Description |
12VGB | 12-Volt 1.2 Amp/hour Rechargeable Gel-cell Battery |
CCM-1A | Color Camera |
GNB-1 | Burial Mount Gooseneck |
GNC-1 | Curb Mount Gooseneck |
TR-100 | Trim Ring |
