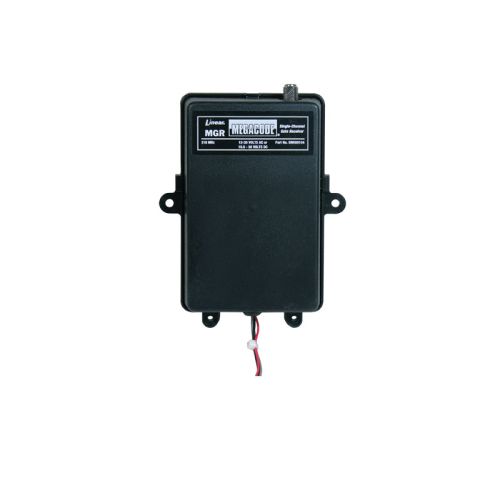

The MGR is a 1-Channel Gate Receiver designed for use with automatic gate operators or systems where a remote antenna is needed. The receiver uses the MegaCode radio format with over a million possible code combinations. Up to 40 transmitters can be programmed into the receiver.
More Information
Manufacturer Part Number
DNR00104
Features
Single Form ”A” (normally open) relay rated at 30 Volts AC/DC up to 5 Amps
Supplied with whip antenna, three feet of coaxial cable, and bulkhead connector
Memory: storage for up to 40 MegaCode transmitters
Power: 12 - 30 VAC or 10.5 - 30 VDC
Codes: 1,000,000+ (MegaCode format)
RF frequency: 318 MHz
Dimensions: 3.625" W x 5.25" H x 1.5" D
Order number: DNR00104
