NTB-3 ASP Sensors, Switches, Relays, Timer
Regular Price $204.00 -40% Special Price $123.38
Availability: 6 available for order
SKU
ALANTB3
NTB-3 ASP Sensors, Switches, Relays, Timer is available to buy in increments of 1

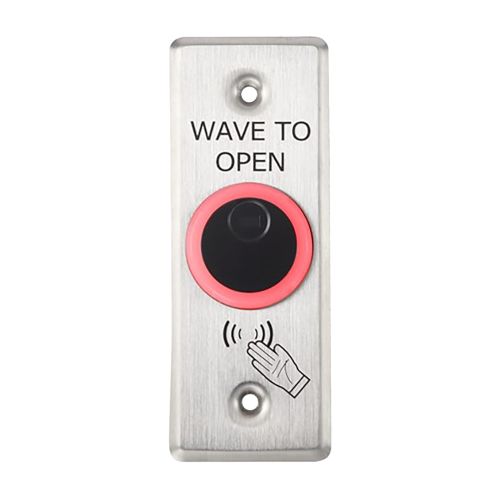

Touchless Actuator, Infrared Sensor, Wired DPDT Relay Output rated 2A @ 30V AC/DC, Programmable Delay, Bi-Color LED, 2 AA Batteries Included, Narrow Jamb "Wave to Open" Plate, Satin Stainless Steel Finish
Description
Specifications
| Series | NTB Battery Operated No Touch Sensors |
|---|---|
| Vendor | ASP |
| Manufacturer | ASP |
| Application | Hand Icon and 'Wave to Open' Text |
| Fire Rating | No |
| Installation | Commercial |
| Limited Warranty | 3 Years |
| Finish Family | Matte Silver |
| Range | 4" |
| UL Listing | Pending |
Details
Battery powered infrared sensors to reliably allow safe egress or to activate a device with a simple hand presentation.
Standard Features:
- Battery or DC powered (optional)
- Low battery LED status indicator
- Wired communication
- Stainless steel with vandal resistant face plate
- Sensor detection range up to 4" for applications that require precise activation
- Built in obstruction detection
- Field-configurable bi-color (red/green) LED status indicators
- Selectable time delay 1 to 10 seconds
- Field-configurable on/off audible tones configurable via jumper
- Plate screened "Wave To Open"
- For use with swinging and sliding door applications
Options:
- NTB-1 with single gang wall plate
- NTB-1A single gang with ADA symbol
- NTB-2 with double gang wall plate
- NTB-2A double gang with ADA symbol
- NTB-3 with narrow stile wall plate
- NTB-3A narrow stile with ADA symbol
- Available in stainless steel (standard), black (BK), and Duranodic Dark Bronze (DURO) finishes
Certifications & Listings:
- CE Certified
- UL294 Listed
Electrical:
- DPDT relay rated 2A at 30 VDC/VAC
- 2 AA alkaline batteries (included)
- Optional 12 or 24 VDC hard-powered
Operating Temperature:
- -13 to + 131 F (-25 to 55 C)
These request to exit solutions provide greater flexibility and control for sensitive applications, without the need to make costly modifications, extending touchless access and egress in an easy and affordable way. The NTB Series is a direct replacement for traditional “request to exit” push buttons and can be used to quickly upgrade existing applications to code compliant no touch solutions using existing wiring.
- Quickly upgrade existing applications to code compliant touchless using existing wiring
- Designed to work in product configurations with and without auto operator (Can include electric strike, electrified deadlatch, exit devices with latch retraction, magnetic locks. Always check with your local AHJ.)
- Direct replacement for traditional “request to exit” push buttons
