Potter PS10-2
The Potter Model PFC-4410RC is a flexible multi-hazard releasing control panel that is well suited for a number of applications. The PFC-4410RC is listed for use with pre-action and deluge sprinkler suppression systems and agent based fire suppression systems. The panel utilizes a microprocessor-based system that has 24 Standard Programs, which covers a majority of installations. The simple to follow Menu Structure programs the entire system in a matter of minutes. In addition to the Standard Programs, the panel allows custom programming to accommodate any installation
Manufacturer Part Number | PS10-2 |
---|---|
Features | Product Overview
The Potter PS10 Series Pressure Actuated Switches are designed for the detection of a waterflow condition in automatic fire sprinkler systems of particular designs such as wet pipe systems with alarm check valves, dry pipe, preaction, or deluge valves. The PS10 is also suitable to provide a low-pressure supervisory signal; adjustable between 4 and 15 psi (0,27 and 1,03 BAR) Main Features
General Information

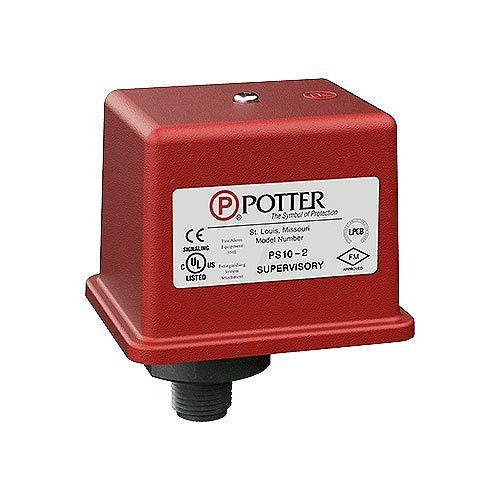

Name: Potter PS10-2 PS10 Series Pressure Type Waterflow Switch with Two Sets SPDT Contacts, Potter Electric Signal, LLC, Potter Electric
Category: Potter Electric, Fire, Water Flow Controls
|
Product Overview
The Potter PS10 Series Pressure Actuated Switches are designed for the detection of a waterflow condition in automatic fire sprinkler systems of particular designs such as wet pipe systems with alarm check valves, dry pipe, preaction, or deluge valves. The PS10 is also suitable to provide a low-pressure supervisory signal; adjustable between 4 and 15 psi (0,27 and 1,03 BAR)
- Independent switch adjustment on two switch models, no tools needed
- Two 1/2” conduit/cable entrances
- Separate isolated wiring chambers
- Separate isolated wiring chambers
- Non-corrosive pressure connection
- VdS version available
- Non-Conductive enclosure
