147 RH 626 Rixson Hinges and Pivot

Regular Price $1,054.27 -48% Special Price $547.34

Availability: 56 available for order

SKU

RIX100147RH626

Notify me when the price drops

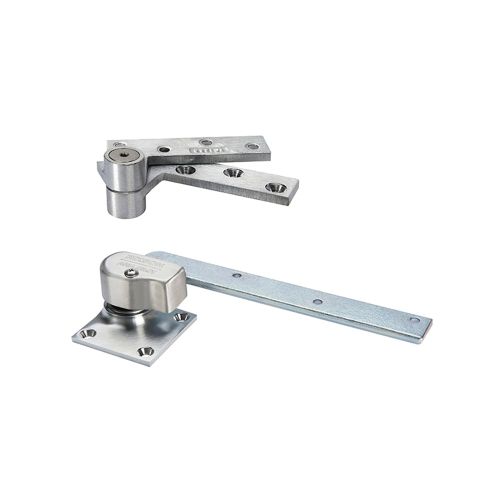

3/4" Offset Pivot, Includes 180 Top Pivot, Right-Handed, Satin Chromium Plated

Description

Offset hung pivot set for interior or exterior doors. Maximum door weight 600 lbs. (including the appropriate number of intermediate pivots). Maximum door width 4 Ft.0" Includes 180 top pivot. Bottom pivot mounts directly to floor. 180 degree maximum door swing.

Specifications

More Information
Series	Rixson Pivots
Vendor	ASSA Abloy
Manufacturer	Rixson
Color	Satin Chrome
Base Material	Brass or Bronze
Installation	Commercial
Limited Warranty	2 Years

Details

Designed to work with the laws of physics, pivots provide the perfect means of hanging a door.

Offset Pivot Hardware: Provides better door weight distribution; can be used on taller doors

Intermediate Pivots: Used for alignment and to ensure proper installation of bottom offset pivots or floor closers

Electrified Intermediate Pivots: Used for power transfer and/or door position monitoring

Center Hung Pivot Hardware: Used for aesthetics or if the pivot point is going to be moved closer to the lock edge of the door

Pocket Pivots: Used when the swinging door is located in a wall pocket

Instructions

Catalogs

Norton Rixson Pivots Catalog
