The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

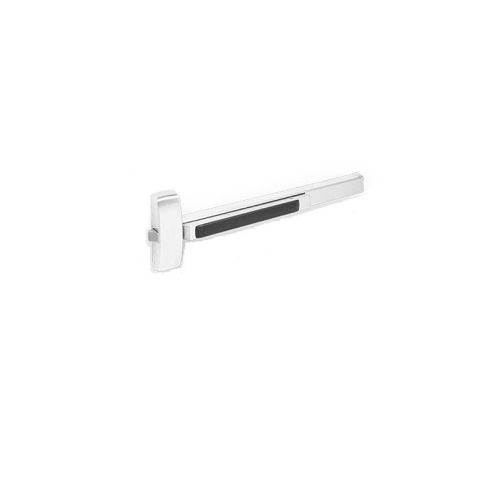

12-8815F 32D Sargent Exit Device
Regular Price $2,863.00 -51% Special Price $1,403.44
Availability: Available for Order
SKU
SAR100128815F32D
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36" Fire-Rated Device, Passage Function, Less Dogging, Satin Stainless Steel Finish, Field Reversible
Description
Speicfications
| Series | 8800 Series Rim Exit Devices |
|---|---|
| Vendor | ASSA Abloy |
| Manufacturer | Sargent |
| ANSI | ANSI/BHMA A156.3 |
| BAA Qualified | Yes |
| Fire Rating | 3 Hours {A} |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 5 Years |
| Origin | USA |
| Finish Family | Matte Silver |
| Handing | Non-Handed |
| Door Thickness | 1-3/4" - 2-1/4" |
| UL Listing | UL10C & UL305 |
Details
The 8800 series is designed for standard width stile applications on wood and metal doors.
Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.
Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Features:
- Single point rim latching device
- Single door & double door applications with mullions
- Quiet operation and solid security
- Devices are ANSI A156.3 - Grade 1
- UL Fire and Panic listed
The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.
Instructions
- Anti Vandal Pull Trim Instructions - 8800, 8900, PE80
- 8800 & 12-8800 Series Rim Exit Devices (16/28/63/66 Functions) Installation Instructions
- 8893 Exit Device Inactive Trim Installation Instructions
- 8895 Exit Device Active Trim Installation Instructions
- 55-Signal Switch for 80 Series Installation Instructions
- 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
- Electric Dogging for 80 Series Installation Instructions
- Video: 8500/8800 Exit Device Latchbolt Monitoring Adjustment Installation
- 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
- 57-Delayed Action 80 Series Exit Device Installation Instructions
- 565 & 665 Metal End Cap Kit Installation Instructions
- 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
- 43-Flush End Cap Rail Cutting Installation Instructions
- AL- Alarmed Exit Device Installation Instructions
- Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
- Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructions
- 80 Series Parts Manual
- 80 Series Exit Device LL Lever Handle Trim Installation Instructions
- HC8800 & 12-HC8800 Rim Exit Mounting Shim Installation Instructions
- 8888, 12-8888, 8800, 12-8800, Etc. Installation Instructions
- 12-8800 Rim Series Center Chassis Assembly (16 Function)
