When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
8255 LW1L 26D Sargent Locks, Cylinders, Cores, Keyblank
Regular Price $1,673.00 -52% Special Price $805.72
Availability: 31 available for order
SKU
SAR1008255LW1L26D

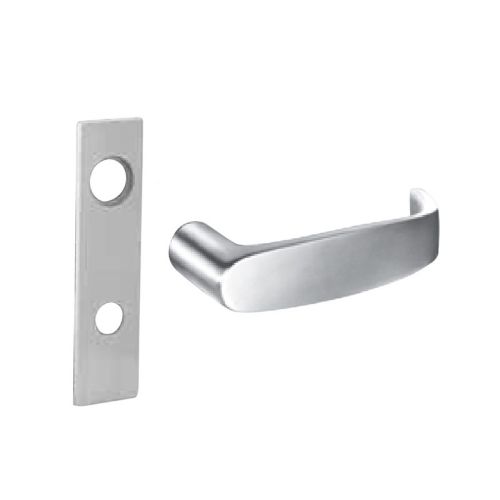

Grade 1 Office or Entry Mortise Lock, L - Lever, LW1 - Escutcheon, Field Reversible, Conventional Cylinder, ASA Strike, Satin Chrome
Description
Specifications
| Series | 8200 Line Lever Mortise Locks |
|---|---|
| Vendor | ASSA Abloy |
| Manufacturer | Sargent |
| BAA Qualified | Yes |
| Fire Rating | 2 Hours {B} |
| Grade | Grade 1 |
| Limited Warranty | 10 Years |
| Origin | USA |
| Cylinder Type | Conventional Cylinder |
| Handing | Field Reversible |
| Bolt Projection | 3/4 In. Latch |
| Door Thickness | 1-3/4 In. |
| Function | 55-Office or Entry |
| Lock Face Size | 8" x 1-1/4" |
| Screws | Combination |
| Std. Strike Type | ASA Strike |
Details
Constructed with the highest quality components to provide maximum security, durability and performance.
Features:
- ANSI/BHMA Grade 2 certified for cycle and strength requirements
- UL-cUL listed for three-hour fire doors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- Available with security key systems (Degree, Signature, KESO, and XC)
- Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
- 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
- Available with behavioral health trim
- 10-year warranty
- Patented design and construction
Benefits:
- Strength & Reliability: Exceeds independent testing, making it the most durable mortise lock in the industry.
- Security: Security features provide resistance against unauthorized entry and vandalism.
- Flexibility & Aesthetics: Visual design with a variety of functions, lever designs and architectural finishes match a wide range of styles and make it perfect for all types of applications (such as offices, hospitals, behavioral health environments, schools/universities).
- Ease of Installation & Maintenance: Multifunctional lockbody makes switching functions easy and reduces inventory requirements.
Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.
Instructions
- Video: 8200 Series Mortise Lock Installation
- 7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructions
- 7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructions
- 7800/8200 Series Mortise Locks Installation Instructions
- 7900/8200 Series Mortise Locks Installation Instructions
