The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
12-NB8710F LHR 32D Sargent Exit Device
Regular Price $3,874.94 -51% Special Price $1,904.73
Availability: Available for Order
SKU
SAR10012NB8710FLHR32D

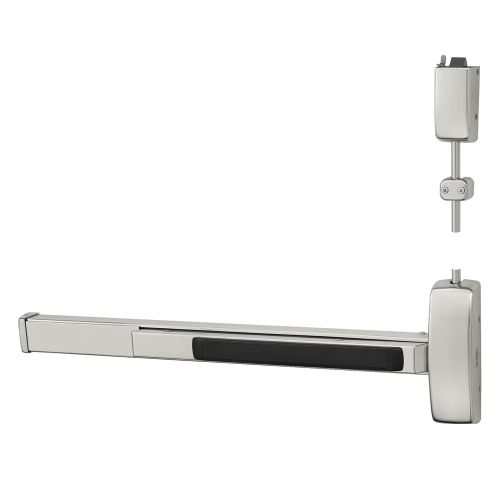

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36" Fire-Rated Device, 84" Door Height, Exit Only, Less Bottom Rod, Less Dogging, Satin Stainless Steel Finish, Left Hand Reverse
Description
Specifications
| Series | NB8700 Series Surface Vertical Rod Exit Devices |
|---|---|
| Vendor | ASSA Abloy |
| Manufacturer | Sargent |
| ANSI | ANSI/BHMA A156.3 |
| BAA Qualified | Yes |
| Fire Rating | 3 Hours {A} |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 5 Years |
Details
The NB8700 Series is a top latch surface vertical rod exit device.
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- Prefix; 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
The NB8700 Series is part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics and innovation. This series has both rated and non-rated openings.
