Schlage ALX80B RHO 626
Schlage ALX80B RHO 626
Special Price $147.25
Regular Price $367.00 -60% Availability: 334 available for order
Schlage
ALX80B RHO 626

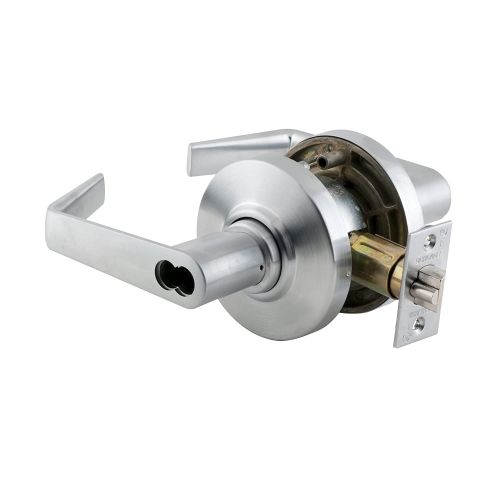

Grade 2 Storeroom Cylindrical Lock with Field Selectable Vandlgard, Rhodes Lever, SFIC Less Core, Satin Chrome Finish, Non-handed
Schlage
ALX80B RHO 626
Grade 2 Storeroom Cylindrical Lock with Field Selectable Vandlgard, Rhodes Lever, SFIC Less Core, Satin Chrome Finish, Non-handed
More Information | Manufacturer Part Number | ALX80B RHO 626 |
|---|
| Features |
| Function |
80-Storeroom Lock |
| Function Family |
Storeroom |
| ANSI Function |
F86 - Storeroom |
| Lever/Knob Design |
RHO - Rhodes Lever |
| Lever/Knob Design Family |
Straight Return Lever |
| Rose/Escutcheon Design |
3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions |
Rhodes |
| Cylinder Type |
SFIC Prep Less Core |
| Num Pins |
6 to 7 |
| Handing |
Non-handed |
| Door Thickness |
1-3/8" - 1-3/4" |
| Std. Latch Number |
47267042 |
| Std. Latch Type |
Deadlatch |
| Std. Latch Backset Dim |
2-3/4" |
| Latch Bore Diameter |
7/8 In. |
| Lock Face Size |
1-1/8 In. x 2-1/4 In. |
| Bolt Projection |
1/2 In. |
| Bore Hole Diameter |
2-1/8 In. |
| Std. Strike Number |
47267101 |
| Std. Strike Type |
ANSI Strike |
| Std. Strike Height |
4-7/8" |
| Std. Strike Width |
1-1/4" |
| Screws |
Combination |
| Product Type |
Cylindrical Lock |
|
|---|
| Function |
80-Storeroom Lock |
| Function Family |
Storeroom |
| ANSI Function |
F86 - Storeroom |
| Lever/Knob Design |
RHO - Rhodes Lever |
| Lever/Knob Design Family |
Straight Return Lever |
| Rose/Escutcheon Design |
3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions |
Rhodes |
| Cylinder Type |
SFIC Prep Less Core |
| Num Pins |
6 to 7 |
| Handing |
Non-handed |
| Door Thickness |
1-3/8" - 1-3/4" |
| Std. Latch Number |
47267042 |
| Std. Latch Type |
Deadlatch |
| Std. Latch Backset Dim |
2-3/4" |
| Latch Bore Diameter |
7/8 In. |
| Lock Face Size |
1-1/8 In. x 2-1/4 In. |
| Bolt Projection |
1/2 In. |
| Bore Hole Diameter |
2-1/8 In. |
| Std. Strike Number |
47267101 |
| Std. Strike Type |
ANSI Strike |
| Std. Strike Height |
4-7/8" |
| Std. Strike Width |
1-1/4" |
| Screws |
Combination |
| Product Type |
Cylindrical Lock |
