The 692 SmartBar is an electronic switching device with no moving parts, which serves as a non-latching request-to-exit device. It allows one motion egress at doors equipped with an electronic locking device, most commonly an electromagnetic lock, with âââÈ âìöâìÃâÉâìÃâìâìÃâìâ no prior knowledgeâââÈ âìöâìÃâÉâìÃâìâìÃâì required by the user.

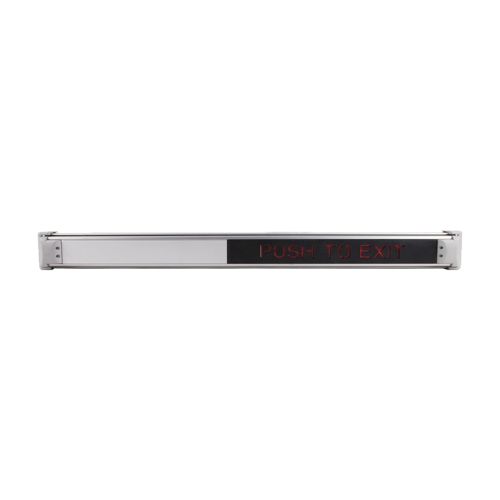

692 36 628RD R Schlage Electronics Exit Device
Regular Price $1,126.00 -45% Special Price $616.15
Availability: 4 available for order
SKU
LOC10069236628RDR
SmartBar Request-to-Exit Device, Narrow Stile Pushpad, Low Profile, 36", Red Lettering, RHR, Satin Aluminum Clear Anodized
Description
Speicfications
| Series | 692 Series SmartBars |
|---|---|
| Vendor | Allegion |
| Manufacturer | Schlage Electronics |
| Color | Satin Aluminum Clear Anodized |
| Base Material | Aluminum |
| Installation | Commercial |
| Finish Family | Matte Silver |
| Switch Type | Request to Exit & Double Pole Double Throw |
Details
An electronic switching device with no moving parts, which serves as a non-latching request-to-exit device.
- Patent-pending infrared detection along bar releases locking device when light beam is broken
- One motion egress when installed with electromagnetic or electrified locks
- Large "PUSH TO EXIT" lettering provides obvious exit indication with glow-in-the- dark option
- Low profile provides ample clearance through the door
- Audible alarm is standard
- Left- or right-hand reverse (field reversible)
- For aluminum, hollow metal and wood doors
- No moving parts for low maintenance and long life
- Heavy-duty aluminum extrusion with cast metal end caps for maximum durability
- Quick installation brackets/universal mounting system
The 692 series SmartBar allows one motion egress at doors equipped with an electronic locking device, most commonly an electromagnetic lock, with "no prior knowledge" required by the user. Touching the SmartBar at any point on the bar activates internal circuitry which controls power to the locking device. No moving parts results in low maintenance and long life.
