Door position switches are used to detect the open or closed status of an opening and then send this status to a control panel. They come in a variety of shapes and sizes and are designed for monitoring door positions, roof hatches, gates etc.
679-05WD Schlage Electronics Sensors, Switches, Relays, Timer
Regular Price $160.00 -40% Special Price $95.69
Availability: 166 available for order
SKU
LOC10067905WD

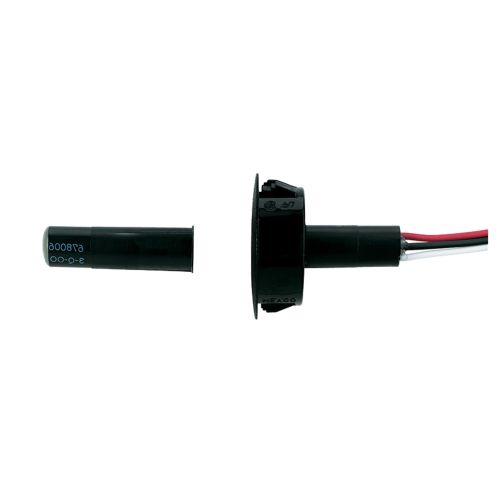

Door Position Switch, Wood Doors and Metal Frames, Concealed SPDT, Magnetic
Description
Specifications
| Series | Schlage Electronics System Accessories |
|---|---|
| Vendor | Allegion |
| Manufacturer | Schlage Electronics |
| Installation | Commercial |
