Door position switches are used to detect the open or closed status of an opening and then send this status to a control panel. They come in a variety of shapes and sizes and are designed for monitoring door positions, roof hatches, gates etc.
7764 Schlage Electronics Sensors, Switches, Relays, Timer
Regular Price $359.00 -46% Special Price $193.00
Availability: 86 available for order
SKU
LOC1007764

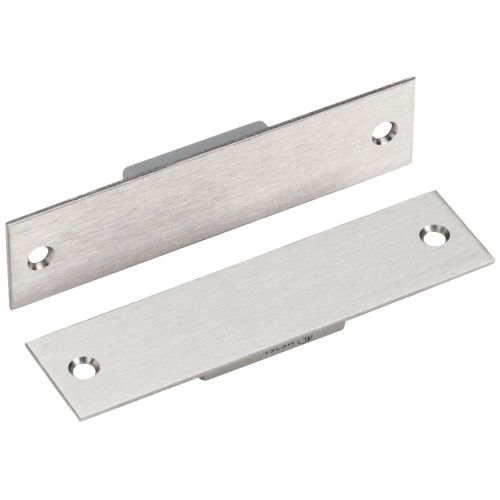

Magnetic Door Position Switch, Concealed Flush Mount, Single Pole Double Throw
Description
Specifications
| Series | Schlage Electronics System Accessories |
|---|---|
| Vendor | Allegion |
| Manufacturer | Schlage Electronics |
| Installation | Commercial |
| Operating Voltage | 24 VDC |
