Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
L9010 07A 630 Schlage Locks, Cylinders, Cores, Keyblank
Regular Price $1,162.00 -50% Special Price $585.65
Availability: 22 available for order
SKU
SCH100L901007A630

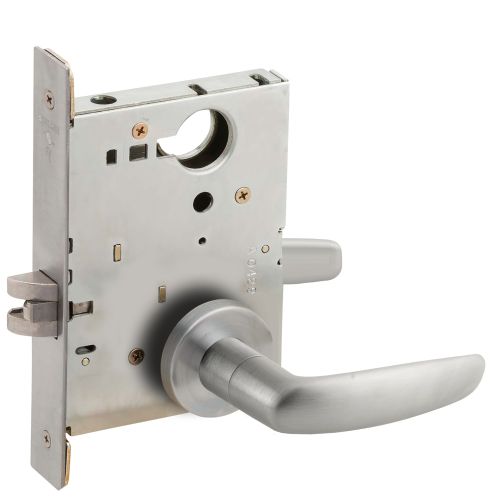

Grade 1 Passage Latch Mortise Lock, 07 Lever, A Rose, Satin Stainless Steel Finish, Field Reversible
Description
Specifications
| Series | L9000 Series Mortise Lock |
|---|---|
| Vendor | Allegion |
| Manufacturer | Schlage |
| Color | Satin Stainless Steel |
| ANSI | A156.13-2017 Series 1000, Grade 1 |
| BAA Qualified | Yes |
| Fire Rating | 3 Hours {A} |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 3 Years |
| Origin | Mexico |
| Finish Family | Matte Silver |
| Handing | Field Reversible |
| Lever/Knob Design Family | Curved Lever |
| Bolt Projection | 3/4" Latch |
| Door Thickness | 1-3/4" |
| Function | 9010-Passage Latch |
| Lock Face Size | 8" x 1-1/4" |
| Screws | Combination |
| Std. Strike Type | ANSI Strike |
| UL Listing | UL Listed |
Details
Extra heavy duty mortise lock protected by all metal heavy-gauge steel.
Durability and Strength
- Heavy-gauge, fully wrapped steel case protects against door edge attacks
- All-metal zinc dichromate-plated working parts
- Electronic components protected by inside lock case
- Wear and tear reduced by two-piece anti-friction tongue
- Outside and inside trim thru-bolted together and through the door
Built-in Security
- Unsecured failures prevented by break-away spindle, also providing easy spindle replacement
- Spindle manipulation discouraged by hub blocking plate
- Spring-loaded fusible link provides fail secure mode in case of fire
- Inside lever applied by screwless shank mounting - no exposed trim mount screws
Adaptable to your application
- Universal lock case featuring ten functions in one case
- Floating mounting tabs adjust to fit a beveled door edge
- Field-reversible handing without opening lock case
- Simple trim retrofit made possible by external spring cages
- Locking thumb-turn on the inside of door shows when the door is unlocked and locked
- Lever rotation in both directions for ease of use
- Independent lever rotation
Schlage L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.
Instructions
- L9000 Indicator Handing Instructions
- L9000 Installation Instructions
- L9000 Knob Installation Instructions
- L400 Installation Instructions
- L Series Mounting Plate Installation Instructions
- L9000 Indicator Lever w/ Escutcheon Installation Instructions
- L9000 Indicator Lever w/ Sectional Installation Instructions
- Video: AL Lock Installation
- Schlage L9000 MLR Mortise Wiring Instructions/Specifications
- Schlage LM9300 Multi-Point Rod Installation Instructions
- Schlage L9000 Series HSLR Installation Instructions
- Schlage L9000 Series Indicator Lock Sectional Installation Instructions
- Schlage L9000 Series N Escutcheon Inside Indicator Instructions
- Schlage LM9300 Multi-Point Lock Installation Instructions
- Schlage L9000 Series Indicator Lock Escutcheon Installation Instructions
- Schlage L9000 Series with Key Override Feature Installation Instructions
- Schlage L9000 with Motorized Latch Retraction Instructions
- Schlage L9076/L9077 Holdback Feature Instructions
- Schlage LM9200 Series Lock Installation Instructions
