L9092EUL 02A 613 RX Schlage Electric Lock

Regular Price $2,190.00 -50% Special Price $1,103.76

Availability: Available for Order

SKU

SCH100L9092EUL02A613RX

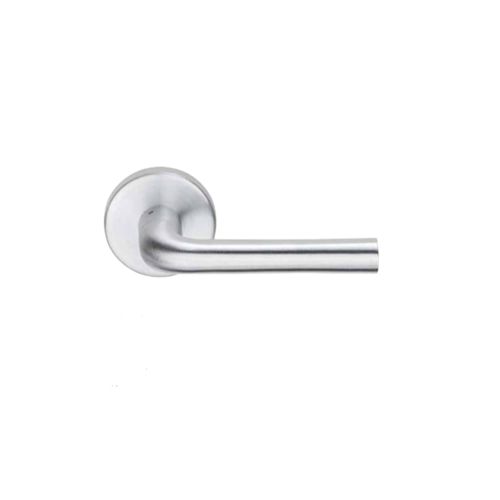

Grade 1 Fail Secure Electric Mortise Lock, Less Cylinder, 02 Lever, A Rose, Request to Exit, Dark Oxidized Satin Bronze Oil Rubbed Finish, Field Reversible

Description

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.

Specifications

More Information
Series	L9090 Series Electrified Mortise Lock
Vendor	Allegion
Manufacturer	Schlage
Color	Dark Oxidized Satin Bronze Oil Rubbed
Base Material	Bronze
Fire Rating	3 Hours {A}
Grade	Grade 1
Installation	Commercial
Limited Warranty	1 Year
Finish Family	Dark Bronze
Cylinder Type	Less Cylinder
Handing	Field Reversible
AMP Draw	400mA
Bolt Projection	3/4"
Door Thickness	1-3/4"
Function	9092EU-Fail Secure
Lock Face Size	8" x 1-1/4"
Operating Voltage	12VDC/24VDC
Power	Hard Wired
Screws	Combination
Std. Strike Type	ASA
Switch Type	Request to Exit
