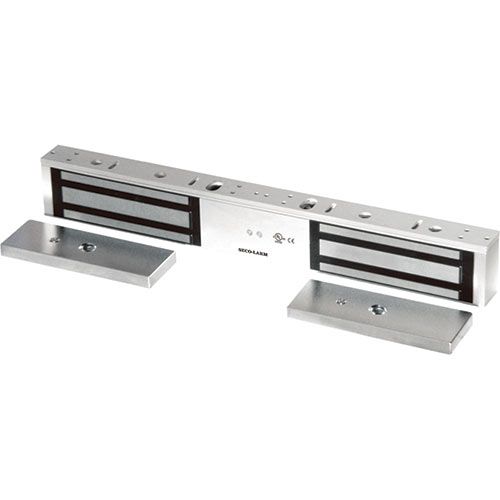

SECO-LARM E-941DA-1K2P Double-Door Maglock – 1,200-lb Holding Force, Sensor, Status LED, UL
SECO-LARM E-941DA-1K2P Double-Door Maglock – 1,200-lb Holding Force, Sensor, Status LED, UL
Special Price $248.60
Regular Price $285.65 -13% Availability: Available for Order
SECO-LARM BS1-SCL-E941DA1K2P E941DA1K2P DBL MAG LOCK W/SENS
- Anodized aluminum housing (US 28)
- 12 or 24 VDC (selectable)
- No residual magnetism
- Adjustable mounting bracket
- MOV surge protection
- Complete mounting hardware for typical installations
- "L" bracket and "Z" brackets available for easy mounting
- Detachable face plate
- UL and ULC listed
- CE listed
- RoHS compliant
- Built-in dual-color status LED and bond sensor to show locking status:
--- Green: Door is closed and locked
--- Red: Door not closed and/or locked
--- Off: Door in use / no power
- Bond sensor output: 3A@12VDC
More Information | Manufacturer Part Number | E-941DA-1K2P |
|---|
| Features |
| Holding Force |
1,200-lb (545kg) per door |
| Operating Voltage |
12 or 24 VDC±10% |
| Current Draw |
500mA@12VDC per door (1A total) 250mA@24VDC per door (500mA total) |
| Operating Temperature |
14º~131º F (-10º~55º C) |
| Certification |
UL, ULC, CE |
| Electromagnet Dimensions |
21"x1-5/8"x2-5/8" (536x42x67 mm) |
| RoHS Compliance |
Yes |
| Armature Dimensions |
7-1/4"x5/8"x2-3/8" (185x16x61 mm) |
| Case Shipping Weight |
43-lb (19.5kg) |
| Weight |
21-lb (10kg) |
| Case Quantity |
2 pcs |
| Bond Sensor |
Yes |
| Status LED |
Yes |
|
|---|
| Holding Force |
1,200-lb (545kg) per door |
| Operating Voltage |
12 or 24 VDC±10% |
| Current Draw |
500mA@12VDC per door (1A total) 250mA@24VDC per door (500mA total) |
| Operating Temperature |
14º~131º F (-10º~55º C) |
| Certification |
UL, ULC, CE |
| Electromagnet Dimensions |
21"x1-5/8"x2-5/8" (536x42x67 mm) |
| RoHS Compliance |
Yes |
| Armature Dimensions |
7-1/4"x5/8"x2-3/8" (185x16x61 mm) |
| Case Shipping Weight |
43-lb (19.5kg) |
| Weight |
21-lb (10kg) |
| Case Quantity |
2 pcs |
| Bond Sensor |
Yes |
| Status LED |
Yes |
