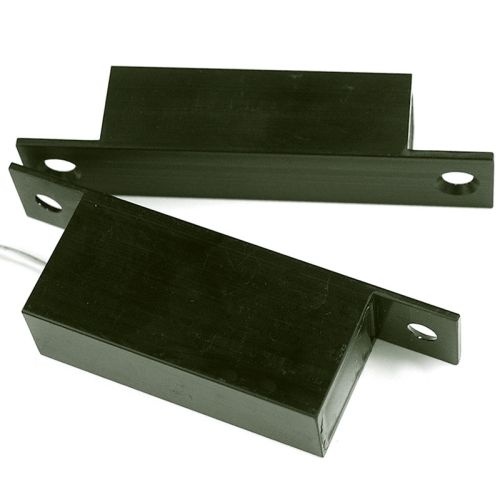

MSS-1C Securitron Sensors, Switches, Relays, Timer

Tamper-resistant Maximum Security Switches (MSS) provide versatile door monitoring with armored cable options to detect the status of windows, doors, gates and more in higher security settings. With multiple options for different environments, MSS can be used with access control or alarm systems to provide peace of mind where status detection is a critical concern. Interfaces to access control and alarm systems for remote indication of open/closed status. Unique "mated" magnetic contact for preventing defeat attempts by foreign magnets. Can be used to provide initiate signal to XDT delayed egress timer. Hidden anti-tamper output (MSS-1 and MSS-1G). Layered protection for tamper detection and reporting. SPDT Contact. Dimensions: Contact 3/4"H x 4-1/4"L x 3/4"D, Switch 1-1/2"H x 4-1/4"L x 3/4"D. Electrical: Main Output: SPDT at max of 125 mA at 24 VDC; 250 mA at 12 VDC. Tamper Output: Closed when secure; open to alarm, 1A max current. Operating Temperature: -40 to +150F [-40 to +65C].
