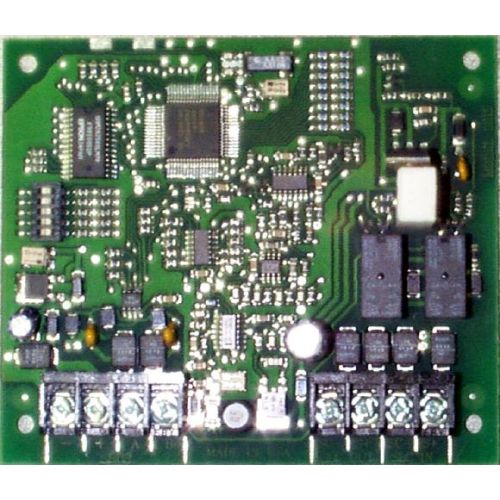

The Model 5815XL SLC Expander is a signaling line circuit controller for Silent Knight's IntelliKnight 5820XL analog/addressable fire control panel. It allows you to add 127 addressable devices to the IntelliKnight system. 5815XLs can be added to the 5820XL for a maximum of 508 addressable devices per IntelliKnight system. 5815XL signaling circuits have the same functionality as the SLCs that are built into the IntelliKnight panel and support the same addressable devices as the main panel. The 5815XL connects to the panel via the RS 485 bus and is housed in the IntelliKnight 5820XL or 5895XL cabinet.
More Information
Manufacturer Part Number
5815XL
Features
• Adds 99 SK modules and 99 SK detectors or 127 SD addressable devices to an 5820XL/EVS IntelliKnight system • Three 5815XLs per system • 5815XL SLCs have same functionality as the 5820XL/EVS, including Style 6 (Class A) configuration • Communicates with the IntelliKnight panel via RS 485 system bus • LED indicates good communication • UL 864 listed, complies with NFPA 72 and 101 • Communicates on most standard wiring systems (ideal for retrofits) • FM approved; CSFM approved; MEA
