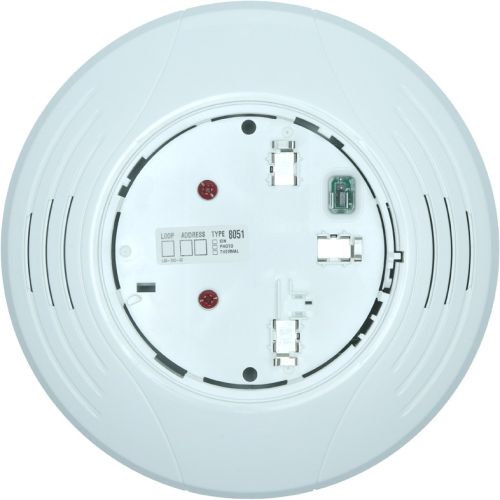

Fire-Lite B200S-WH Intelligent Addressable Sounder Base
Special Price $73.34 Regular Price $122.70 -40%
Availability: Available for Order
SKU
B200SWH
Fire-Lite B200S-WH Intelligent Addressable Sounder Base, White
Fire-Lite B200S-WH Intelligent Addressable Sounder Base, White
| Manufacturer Part Number | B200S-WH |
|---|---|
| Features | Product OverviewThe B200S-WH is a white, Intelligent addressable sounder base capable of producing sound output in high or low volume with ANSI Temporal 3, ANSI Temporal 4, continuous tone, marching tone, and custom tone. Uses LiteSpeed™ protocol. The B200S sounder and -LF sounder bases (B200S-WH/B200S-IV/ B200S-LF-WH/B200S-LF-IV) adopt the same address as the detector, but use a unique device type on the loop. The Fire Alarm Control Panel (FACP) can use that address to command an individual sounder — or a group of sounders — to activate. The command set from the FACP can be tailored to multiple event-driven tone outputs allowing selection of volume (75 or 85 dBA), tone (ANSI Temporal 3, ANSI Temporal 4, or March Time) and group. In addition, some FACPs will enable custom tone patterns. The B200S series sounder bases recognize the System Sensor synchronization protocol. This enables them to be used as a component of the general evacuation signal — along with other System Sensor AV appliances — when connected to a power supply or FACP output capable of generating the System Sensor synchronization pulses.
Main Features
General InformationName: Fire-Lite B200S-WH Intelligent Addressable Sounder Base, White
Category: Fire-Lite Alarms by Honeywell, Fire, Fire Detection Devices & Accessories, Detector Accessories & Bases, ADI Pro Rewards
UPC Code: 783863052996
Country of Origin: Mexico. Country of origin is subject to change.
|
Write Your Own Review
Product Overview
The B200S-WH is a white, Intelligent addressable sounder base capable of producing sound output in high or low volume with ANSI Temporal 3, ANSI Temporal 4, continuous tone, marching tone, and custom tone. Uses LiteSpeed™ protocol. The B200S sounder and -LF sounder bases (B200S-WH/B200S-IV/ B200S-LF-WH/B200S-LF-IV) adopt the same address as the detector, but use a unique device type on the loop. The Fire Alarm Control Panel (FACP) can use that address to command an individual sounder — or a group of sounders — to activate. The command set from the FACP can be tailored to multiple event-driven tone outputs allowing selection of volume (75 or 85 dBA), tone (ANSI Temporal 3, ANSI Temporal 4, or March Time) and group. In addition, some FACPs will enable custom tone patterns. The B200S series sounder bases recognize the System Sensor synchronization protocol. This enables them to be used as a component of the general evacuation signal — along with other System Sensor AV appliances — when connected to a power supply or FACP output capable of generating the System Sensor synchronization pulses.
Main Features
- Bases enable quick and secure detector plug-in
- SEMS screws provide easyWiring connection
- Support for 12-24 AWG provides installation flexibility
- Multiple base formats meet application requirements
- Standard white color with ivory and black options
- UL 268 compliant
- Mechanical locking feature restricts removal of attached sensor head
- Pre-wired mounting plate simplifies installation
- Application driven feature sets
- Sounder bases both UL 268 and UL 464 compliant
General Information
Name: Fire-Lite B200S-WH Intelligent Addressable Sounder Base, White
Category: Fire-Lite Alarms by Honeywell, Fire, Fire Detection Devices & Accessories, Detector Accessories & Bases, ADI Pro Rewards
UPC Code: 783863052996
Country of Origin: Mexico. Country of origin is subject to change.
