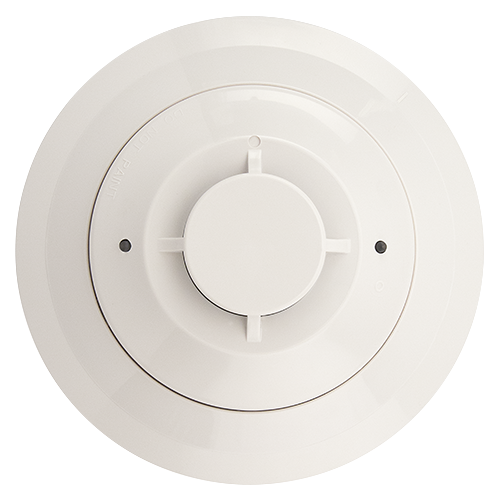

Photoelectronic Low-Profile Plug-In Detector for Special Applications. For replacement purposes with 4-wire InnovairFlex duct smoke detectors
Note: The 2D51 needs to be used with the D4P120 and B210LP for pendant mount applications.
The 2D51 can be used as a pendant mount detector in no-flow/low-flow air-handling systems (0-4,000 FPM). The pendant /plenum mounted 2D51 is to be installed into a B210LP base and wired to a D4P120 power board-only control unit. The D4P120 power board is capable of controlling up to two 2D51 sensors.Pendant mounted in a standard electrical box within the duct, the twist-in/twist-out head allows easy removal from the base for quick cleaning and maintenance. The 2D51 heads can be locally tested using a magnet or by using the test/reset push button on the D4P120 power board.
More Information
Manufacturer Part Number
2D51
Features
Features for 2D51/B210LP/D4P120 • Low-profile smoke detector design • Low standby current • Two LEDs blink in standby • Detector head plugs easily into base • Built-in test switch • Field sensitivity metering of detector to meet the requirements of NFPA 72 with the use of RTS2/RTS2-AOS and SENS-RDR • Designed for mounting on a standard electrical box • SEMS screws for easy wiring and positive wire retention • Removable cover and insect screen for field cleaning • Remote push button Test/Reset, LEDs provide visual indications • Onboard supervisory and alarm relays • Accepts 24 or 120V supply voltage • Interconnect up to 100 units for common functions • Compatible for interconnection with System Sensor InnoviarFlex™ D4120 or D4120W duct smoke detectors and remote accessories
Write Your Own Review
Features for 2D51/B210LP/D4P120 • Low-profile smoke detector design • Low standby current • Two LEDs blink in standby • Detector head plugs easily into base • Built-in test switch • Field sensitivity metering of detector to meet the requirements of NFPA 72 with the use of RTS2/RTS2-AOS and SENS-RDR • Designed for mounting on a standard electrical box • SEMS screws for easy wiring and positive wire retention • Removable cover and insect screen for field cleaning • Remote push button Test/Reset, LEDs provide visual indications • Onboard supervisory and alarm relays • Accepts 24 or 120V supply voltage • Interconnect up to 100 units for common functions • Compatible for interconnection with System Sensor InnoviarFlex™ D4120 or D4120W duct smoke detectors and remote accessories
