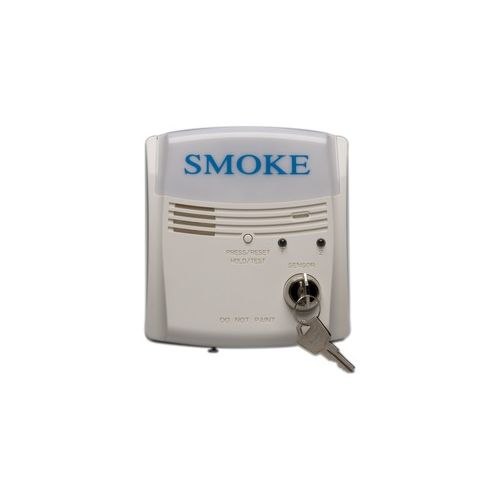

RTS2 is a multi-signaling accessory, without strobe, designed to work with InnovairFlex 4-wire conventional duct smoke detectors.
The RTS2 and RTS2-AOS multi-signaling accessories are designed to work with InnovairFlex 4-wire conventional duct smoke detectors. These accessories include a key switch that can be used to select one of two connected sensors to be tested, reset, or both by a push button switch. They also enable sensitivity measurements using the SENS-RDR sensitivity reader (sold separately). The AOS (Add-On Strobe) is an optional accessory included with the RTS2-AOS model.
More Information
Manufacturer Part Number
RTS2
Features
Specifications
Dimensions 4.8"W x 5.3"H x 1.6"D (12.2cm W x 11.9 cm H x 3.8 cm D)
Operating Humidity Range 95% relative humidity; non-condensing
Operating Temperature Range 14°F to 140°F (-10°C to 60°C)
Shipping Weight 0.35 lb. (160 g)
Sounder 85 dBA at ten feet
Voltage Range 20-29 VDC
Wire Connections Strip terminal, 14 AWG to 22 AWG wire
