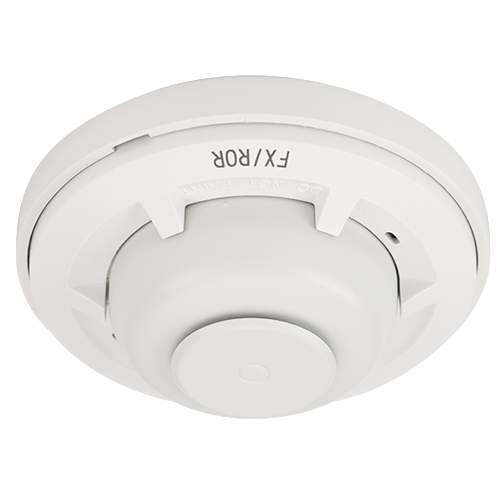

System Sensor 5604 Heat Detector
The 5600 series offers a full-line of configurations to accommodate a broad range of applications. Both single and dualcircuit models are available for low and high temperature ratings with either fixed temperature or combination fixed temperature rate of rise (ROR) activation. The ROR element of the fixed/ ROR models is restorable to accommodate field testing.
| Manufacturer Part Number | 5604 |
|---|---|
| Features | Main Features
Dimensions
1.7" Height x 4.8" Diameter
Weight (Approximate) 6 oz |
Main Features
-
Temperature Range: 194°F (90°C)
-
Humidity Accuracy: 5% at 95
-
Height: 1.7"
-
Weight (Approximate): 6 oz
-
Limited Warranty: 3 Year
-
25 Feet Space Cover
-
Self Restoring Rate-of-Rise (ROR) Sensor
-
Maximum Installation Temperature 150°F
Dimensions
1.7" Height x 4.8" Diameter
Weight (Approximate)
6 oz
