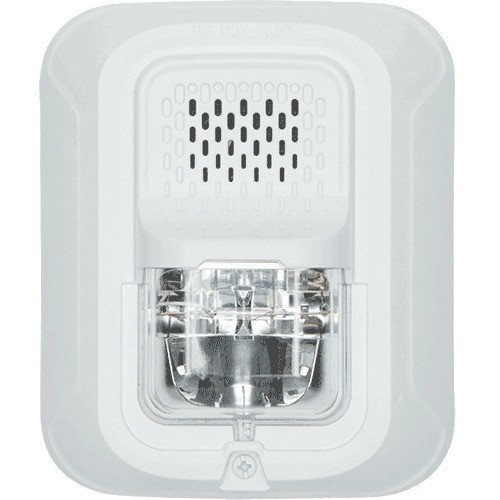

System Sensor SpectrAlert CHSWL Chime/Strobe

Be the first to review this product

Special Price $123.25

Regular Price $145.00 -15%

Availability: Available for Order

SKU

SYS-CHSWL

Notify me when the price drops

System Sensor SpectrAlert CHSRL Chime/Strobe

System Sensor L-Series chimes and chime strobes shall mount to a standard 4 × 4 × 1½-inch back box, 4-inch octagon back box, single-gang 2 × 4 × 17/8-inch back box, or double-gang back box. A universal mounting plate shall be used for mounting products. The notification appliance circuit wiring shall terminate at the universal mounting plate. Also, System Sensor L-Series products, when used with the Sync•Circuit Module accessory, shall be powered from a non-coded notification appliance circuit output and shall operate on a nominal 12 or 24 volts. When used with the Sync•Circuit Module, 12-volt rated notification appliance circuit outputs shall operate between 8.5 and 17.5 volts; 24-volt rated notification appliance circuit outputs shall operate between 16.5 and 33 volts. Indoor L-Series products shall operate between 32 and 120 degrees Fahrenheit from a regulated DC, or full-wave rectified, unfiltered power supply. Chime strobes shall have field-selectable candela settings of 15, 30, 75, 95, 110 , 135, and 185 for wall units and 15, 30, 75, 95, 115, 150, and 177 for ceiling units.

More Information
Manufacturer Part Number	CHSWL
Features	• Updated modern aesthetics • Plug-in design with minimal intrusion into the back box • Mounting plate shorting spring feature checks wiring continuity before device installation • Captive mounting screw • Tamper-resistant construction • Field-selectable candela settings: – Wall: 15, 30, 75, 95, 110, 135, 185 – Ceiling: 15, 30, 75, 95, 115, 150, 177 • Automatic selection of 12- or 24-volt operationat 15 and 30 candela • Rotary switch for tone and volume selections • Five selectable tones with high and low volume settings • Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices • Wall models listed for wall mounting only, ceiling models listed for ceiling mounting only

Write Your Own Review

• Updated modern aesthetics

• Plug-in design with minimal intrusion into the back box

• Mounting plate shorting spring feature checks wiring continuity before device installation

• Captive mounting screw

• Tamper-resistant construction

• Field-selectable candela settings: – Wall: 15, 30, 75, 95, 110, 135, 185 – Ceiling: 15, 30, 75, 95, 115, 150, 177

• Automatic selection of 12- or 24-volt operationat 15 and 30 candela

• Rotary switch for tone and volume selections

• Five selectable tones with high and low volume settings

• Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices

• Wall models listed for wall mounting only, ceiling models listed for ceiling mounting only
