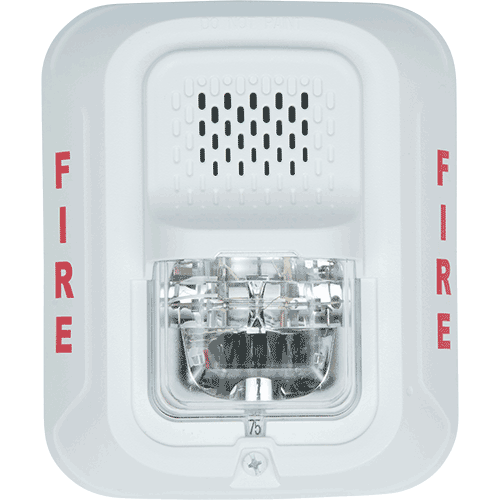

System Sensor P2WL Horn Strobe 2W White Wall
L-Series horn strobes are rich with features guaranteed to cut installation time and maximize profits. Intended for full building notification as well as on the property ground, they produce a loud sound to notify occupants to evacuate the buildings; the strobe is intended to notify those that may have a hearing impairment. Features include a universal mounting plate with a preliminary snap-in feature to hold the product in place for the screw attachment, 7 field-selectable candela settings for wall and ceiling mount devices, and rotary switches to select horn tone and volume settings. Compatible with 12- or 24-volt systems. L-Series horn strobes are listed to UL 1971 and UL 464 for public mode evacuation.
Manufacturer Part Number | P2WL |
---|---|
Features | Specifications
|
Specifications
Selectable strobe settings of 15, 30, 75, 95, 110, 135, and 185 cd
White
see Data Sheet for complete current draw information
see Data Sheet for complete current draw information
Indoor
10 to 93% non-condensing
Wall
32°F to 120°F (-0°C to 49°C)
8 to 17.5 V (12V nominal) or 16 to 33 V (24 nominal)
L-Series
Regulated 12DC/FWR or regulated 24DC/FWR
5.6"L x 4.7"W x 2.5"D (142 mm L x 119 mm W x 64 mm D)
12 to 18 AWG
