Von Duprin electric strikes are known for their reliability, durability and security. The 6100 Series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is UL1034 listed.

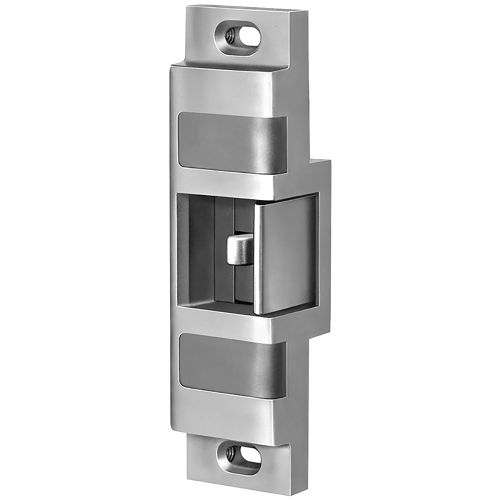

6111 24V 32D Von Duprin Electric Strikes, Bolts, Magnet
Regular Price $1,485.00 -46% Special Price $798.34
Availability: 56 available for order
SKU
VON100611124VUS32D
Grade 1 Electric Strike, Fail Secure (Electrically Unlocked) 24 VDC, 6" x 1-5/8" Faceplate, Fire Rated, For use with Rim Exit Devices on Single Doors or Double Doors with Mullion, Hollow Metal, Aluminum, or Wood Frame, Satin Stainless Steel Finish
Description
Specifications
| Series | 6100 Series Electric Strikes |
|---|---|
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| Application | Single or Double Door with Mullion |
| Color | Satin Stainless Steel |
| BAA Qualified | Yes |
| Fire Rating | Yes {Variable} |
| Installation | Commercial |
| Limited Warranty | 1 Year |
| Origin | USA |
| Finish Family | Matte Silver |
| Configuration | Centered |
| Faceplate Size | 6" x 1-5/8" |
| For Use With | Rim Exit Devices |
| Frame Application | Hollow Metal, Aluminum, or Wood |
| Keeper Size | Pullman Keeper |
| AMP Draw | 330mA |
| Function | Fail Secure |
| Operating Voltage | 24 VDC |
| UL Listing | UL 10C, 1034 |
Details
Reliable, durable, and secure.
- Non-handed design provides greater flexibility
- Strike box is adjustable to compensate for misalignment of the door or frame
- Two piece plug connectors are furnished for ease of installation and for removal during strike servicing § ANSI 156.5 Grade 1, 1500 lb hold force rated
- UL1034 burglary-resistant and UL10C electric strike for fire door
- Six finishes available to suite with existing hardware
- Durable stainless steel construction
- 24 VDC standard with 12 VDC and AC operation optional
- Meets BHMA A156.31, Grade 1 for endurance and strength
- Static strength 1300 lbs § Dynamic strength 70 ft-labs
- Endurance 1,000,000 cycles
The 6100 Series is designed to withstand abuse. Its heavy-duty stainless steel construction is fully UL1034 and UL10C Listed and ANSI/BHMA Grade 1, 1500 lb hold force rated.
Instructions
- 6000 Series Electric Strike Refurbish Kit Installation Instructions
- 6000 Electric Strike Installation Instructions
- 6000 Electric strike DS Replacement Kit Installation Instructions
- 6000 Entry Buzzer Wiring Diagram
- 6111/6111DS Single Door Installation Instructions
- 6113/6113DS Installation Instructions
- 6111/6111DS Double Door Installation Instructions
- 6112/6112DS Installation Instructions
- 6121/6121DS Installation Instructions
- 6114/6114DS Installation Instructions
