88 rim devices for all types of single and double doors with mullion, UL listed for accident hazard installations. Covers stock hollow metal doors with 86 or 161 cutouts. This device is field reversible.

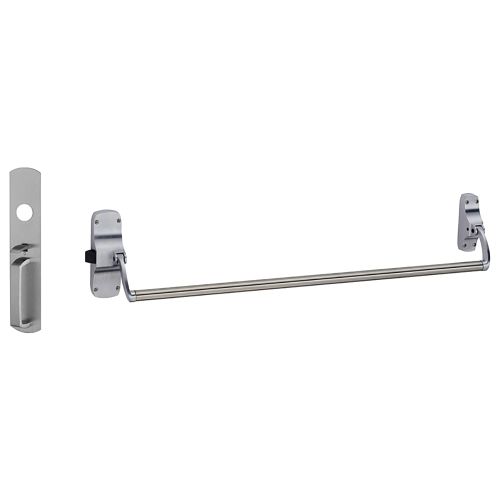

88TP 26D Von Duprin Exit Device
Regular Price $2,891.00 -43% Special Price $1,651.34
Availability: 2 available for order
SKU
VON10088TPUS26D
Grade 1 Rim Exit Bar, Wide Stile Crossbar, 48" Device, Classroom Function, Thumbpiece Trim, Less Cylinder, Hex Key Dogging, Satin Chrome Finish, Field Reversible
Description
Specifications
| Series | 88 Series Rim Crossbar Devices |
|---|---|
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| Color | Satin Chrome |
| Base Material | Brass or Bronze |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 3 Years |
| Finish Family | Matte Silver |
| Cylinder Type | Rim |
| Door Thickness | 1-3/4" |
Details
UL listed for accident hazard installations.
- Device Functions: Ships EO, DT, NL, TP, L, K
- Crossbar Length: 42" (1067 mm) field sizeable Device centerline 39 13/16"
- Crossbar centerline to finished floor: 36 13/16" (935 mm) at center
- Lock stile case: 8 1/4" X 2 3/4" x 15/16" (210 mm x 70 mm x 24 mm)
- Hinge stile case: 6" X 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
- Crossbar tubing: 1" (25 mm) outside diameter
- Projection: Neutral – 4 3/4" (121 mm), Depressed – 4" (102 mm)
- Latch bolt: 3 /4" (19 mm), throw
- Fasteners: All necessary mounting fasteners are included.
