33A and 35A for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 âñ 2014 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. The rim device is non-handed except when the SS (signal switch) option is used. See opposite page for available outside trim and device functions.

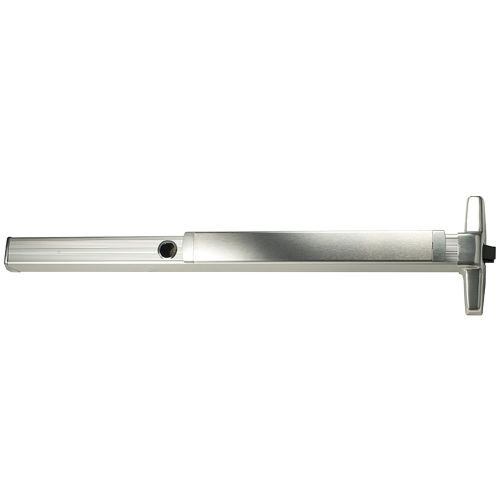

CD33AEO 3 26D Von Duprin Exit Device
Regular Price $2,969.00 -46% Special Price $1,596.13
Availability: 100 available for order
SKU
VON100CD33AEO3US26D
Grade 1 Rim Exit Device, Narrow Stile Pushpad, 36", Exit Only, Less Trim, Cylinder Dogging, Satin Chrome Finish, Non-Handed
Description
Specifications
| Series | 33A Series Rim Exit Device |
|---|---|
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| Color | Satin Chrome |
| ANSI | A156.3 2014 |
| Base Material | Brass or Bronze |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 3 Years |
| Finish Family | Matte Silver |
| Handing | Non-Handed |
| Door Thickness | 1-3/4" |
| UL Listing | UL Listed |
Details
The 33A Series features a grooved mechanism case and is for all types of single and double doors.
- Device Lengths: 3’ 2’4" to 3’ (711mm to 914 mm) door size; 4’ 2’10" to 4’ (864 mm to 1219 mm) door size
- Strikes: 1439 – Dull Black
- Dogging Feature: Hex key dogging standard
- Dogging Options: CD Cylinder Dogging; LD Less Dogging
- Electric Options: LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; SS Signal Switch; EL Electric Latch Retraction; ALK Alarm Exit Kit
- Miscellaneous Options: PN Pneumatic Latch Retraction; GBK Glass Bead Kit
- Fasteners & Includes Sex Bolts (SNB): 1 3/4" (44mm) – 2 1/4" (57mm) Wood & Metal Doors; #425 SNB furnished standard for end case; #325 SNB furnished standard for EO (exit only device)
- Latch Bolt: Deadlocking, 3/4" (19mm) throw
- Device Centerline from Finished Floor: 39 13/16" (1011 mm); 39 11/16" (1008 mm) with Mullion
- Center Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
- Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar Neutral – 3 13/16" (97 mm); Pushbar Depressed – 3 1/16" (78 mm)
The 33A Series is UL listed for Panic Exit Device Hardware and has a deadlocking latchbolt that prevents forced latchbolt retraction providing higher security for your openings.
