3347A and 3547A for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 ñ 2008 Grade 1. The 3547A has a smooth mechanism case and the 3347A has grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used. See opposite page for available outside trim and device functions.
CD3547AEO 3 26D Von Duprin Exit Device
Regular Price $4,141.00 -46% Special Price $2,226.20
Availability: 27 available for order
SKU
VON100CD3547AEO326D

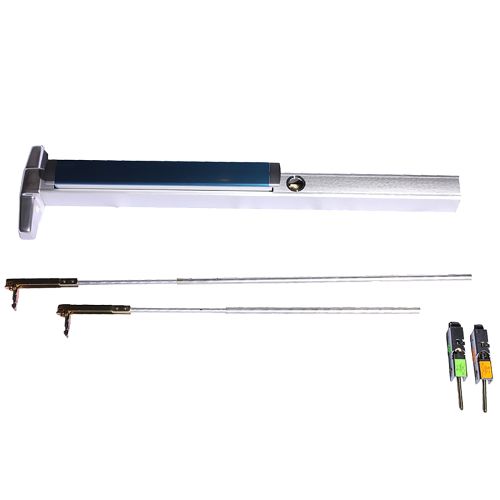

Grade 1 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, 36", Exit Only, Less Trim, Cylinder Dogging, Satin Chrome Finish, Non-Handed
Description
Specifications
| Series | 3547A Series Concealed Vertical Rod Exit Device |
|---|---|
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| Color | Satin Chrome |
| ANSI | A156.3 2008 |
| Base Material | Brass or Bronze |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 3 Years |
| Finish Family | Matte Silver |
| Handing | Non-Handed |
| Door Thickness | 1-3/4" |
| UL Listing | UL Listed |
Details
Finishes – US3, US4, US10, US15 (35A Only) US26, US26D, US26D-AM,US28, 313 and 315.
- Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size
- Device centerline from finished floor: 39 13/16" (1006mm)
- Center case dimensions: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt 5 /8" (16mm) throw
- Door undercut: 1 /4" (7mm)
- Top & bottom latch: 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm)
- Vertical rods: Round 2 piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm) Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm) Extension rod kits available for doors over 8'4" (2533mm)
- Fasteners & sex bolts (SNB): Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
The concealed vertical rod device is non-handed except when the SS (signal switch) option is used. /3547A fits door stiles as narrow as 2-1/8" (44 mm), wood door stiles as narrow as 4" (102mm). Newly designed device has a one piece center case cover.
