22 Rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2008 Grade 1. Covers stock hollow metal doors with 161* cutouts. Fits door stiles as narrow as 3 13/16" (97 mm). The device is non-handed.

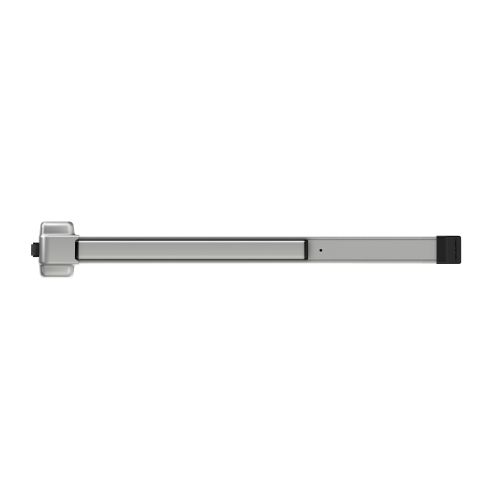

22EO 3 689 Von Duprin Exit Device
Regular Price $736.00 -56% Special Price $321.48
Availability: 370 available for order
SKU
VON10022EO3FTSP28
Grade 1 Rim Exit Device, Wide Stile Pushpad, 36", Exit Only, Accepts Various Trim, Less Trim, Hex Key Dogging, Aluminum Painted Finish, Non-Handed
Description
Specifications
| Series | 22 Series Rim Exit Device |
|---|---|
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| Color | Aluminum Painted |
| ANSI | A156.3 2008 |
| BAA Qualified | Yes |
| Fire Rating | No |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 3 Years |
| Origin | USA |
| Finish Family | Matte Silver |
| Cylinder Type | Non-Keyed |
| Handing | Non-Handed |
| Door Thickness | 1-3/4" to 2-1/4" |
| UL Listing | UL Listed |
Details
Rim exit device for all types of single and double doors with mullion.
- Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
- Device lengths: 3' (914 mm), 4' (1219 mm)
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
- Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
- Projection push bar: Push bar neutral - 3 3/4" (95 mm) push bar depressed - 3" (76 mm)
- Latch bolt: Deadlocking, 3 /4" (19 mm) throw
- Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors optional SNB available for device
- Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
- Mechanical options: GBK glass bead kit AX accessible device
- Dogging feature: Hex key dogging standard
- Dogging options: LD less dogging
- Strikes: 299 – Dull black
Grade 1 Rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware.
