The 230EO, 230DT, 230NL and 230TP have a heavy 10 gauge (2.4mm) steel escutcheon. The 230L has a cast zinc 3/4" (19mm) depth escutcheon.

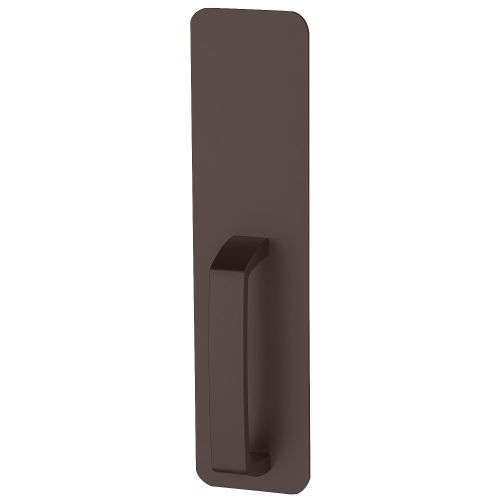

230DT 695 Von Duprin Exit Device
Regular Price $171.00 -56% Special Price $74.69
Availability: 14 available for order
SKU
VON100230DTSP313
Grade 1 Pull Trim, Dummy Function, Wing/Finger Pull, Dark Bronze Painted Finish, Field Reversible
Description
Specifications
| Series | Von Duprin Trims |
|---|---|
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| Application | For Von Duprin 22 Series Exit Devices |
| Color | Dark Bronze Painted |
| ANSI | A156.3 2008 |
| BAA Qualified | Yes |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 3 Years |
| Origin | USA |
| Finish Family | Dark Bronze |
| Cylinder Type | Non-Keyed |
| Handing | Non-Handed |
| Door Thickness | 1-3/4" - 2-1/4" |
Details
Several Von Duprin Trims are available to choose from.
Instructions
- M996L Series Retrofit Installation Instructions
- M996L Series Installation Instructions
- 696/697TP/TP-BE Trim Installation Instructions
- 990DT EO Trim Installation Instructions
- 991K/K-BE, 992L/L-BE BE Trim Mortise Lock Device Installation Instructions
- 992L Series Trim Active L to Rigid Conversion Kit Installation
- SS333NL/TP Trim for 33/3527 Device Metal Door Installation Instructions
- Von Duprin 22/98/99 Series Device with Active Trim Cylinder Tailpiece Guide Retrofit Installation Instructions
- 608DT/NL Trim Installation Instructions
- 880DT Surface Applied Trim for 8847/47-F Vertical Rod Device Installation Instructions
- 990TP/TP-BE/NL Trim 98/9975 Mortise Lock Device Installation Instructions
