The 230EO, 230DT, 230NL and 230TP have a heavy 10 gauge (2.4mm) steel escutcheon. The 230L has a cast zinc 3/4" (19mm) depth escutcheon.

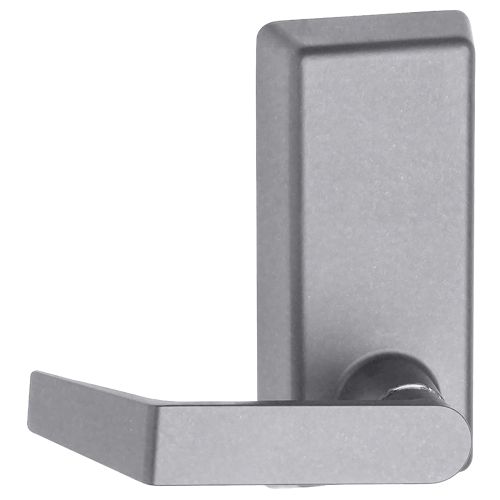

230L-BE-06 689 LHR Von Duprin Exit Device
Regular Price $372.00 -56% Special Price $162.49
Availability: 25 available for order
SKU
VON100230LBE06SP28LHR
Grade 1 Passage 06 Lever Trim, 1-3/4" to 2-1/4" Door Thickness, For Use With 22 Series Exit Devices, Aluminum Painted Finish, Left-Hand Reverse
Description
Specifications
| Series | Von Duprin Trims |
|---|---|
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| Color | Aluminum Painted |
| ANSI | A156.3 |
| BAA Qualified | Yes |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 3 Years |
| Origin | USA |
| Finish Family | Matte Silver |
| Cylinder Type | Non-Keyed |
| For Use With | 22 Series Exit Devices |
| Handing | Left-Hand Reverse |
| Door Thickness | 1-3/4" to 2-1/4" |
Details
Several Von Duprin Trims are available to choose from.
Instructions
- M996L Series Retrofit Installation Instructions
- M996L Series Installation Instructions
- 696/697TP/TP-BE Trim Installation Instructions
- 990DT EO Trim Installation Instructions
- 991K/K-BE, 992L/L-BE BE Trim Mortise Lock Device Installation Instructions
- 992L Series Trim Active L to Rigid Conversion Kit Installation
- SS333NL/TP Trim for 33/3527 Device Metal Door Installation Instructions
- Von Duprin 22/98/99 Series Device with Active Trim Cylinder Tailpiece Guide Retrofit Installation Instructions
- 608DT/NL Trim Installation Instructions
- 880DT Surface Applied Trim for 8847/47-F Vertical Rod Device Installation Instructions
- 990TP/TP-BE/NL Trim 98/9975 Mortise Lock Device Installation Instructions
