8827 surface mounted vertical rod devices for all types of single and double doors, UL listed for accident hazard installations. Covers stock hollow metal doors with 86 cutout and fits door stiles as narrow as 2 1/2" (90 mm). This device is field sizable.

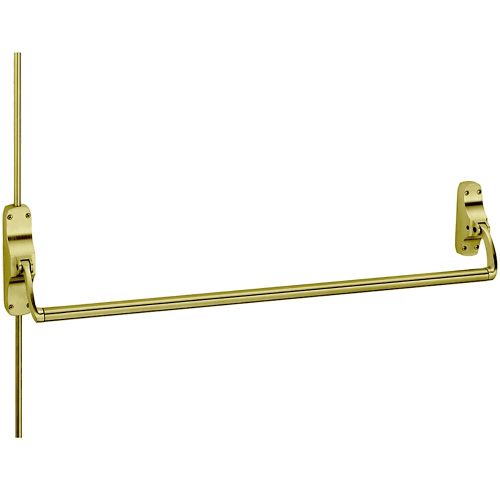

8827EO US4 Von Duprin Exit Device
Regular Price $3,057.00 -43% Special Price $1,746.16
Availability: 1 available for order
SKU
VON1008827EOUS4
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Crossbar, 48" Device, Exit Only, Less Trim, Hex Key Dogging, Satin Brass Finish, Field Reversible
Description
Specifications
| Series | 8827 Series Surface Vertical Rod Crossbar Devices |
|---|---|
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| Color | Satin Brass |
| Base Material | Brass |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 3 Years |
| Finish Family | Matte Brass |
| Cylinder Type | Non-Keyed |
| Door Thickness | 1-3/4" |
Details
8827 surface mounted vertical rod devices for all types of single and double doors.
- Device functions Field reversible Device ships EO, DT, TP, K, L, TL
- Crossbar length 42" (1067 mm) field sizable
- Device centerline 3913/16"
- Crossbar centerline to finished floor 36 13/16" (935 mm) at center
- Lock stile case 8 1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm) Lock case 4 5/8" x 5 3/4" x 1 1/16" (117 mm x 146 mm x 27 mm)
- Faceplate 1 1/4" x 8" x 7 /32" (32 mm x 203 mm x 6 mm)
- Cylinder backset 2 3/4" (70 mm)
- Hinge stile case 6" x 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
- Crossbar tubing 1" (25 mm) outside diameter
- Projection Neutral – 4 7/8" (124 mm) Depressed – 4" (102 mm)
- Latchbolt 5 /8" (16mm) throw
- Fasteners and sex bolts (SBN) Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) thick metal or wood doors. Sex nuts and bolts included
UL listed for accident hazard installations. Covers stock hollow metal doors with 86 cutout and fits door stiles as narrow as 2 1/2" (90 mm). This device is field sizable.
