88 rim devices for all types of single and double doors with mullion, UL listed for accident hazard installations. Covers stock hollow metal doors with 86 or 161 cutouts. This device is field reversible.

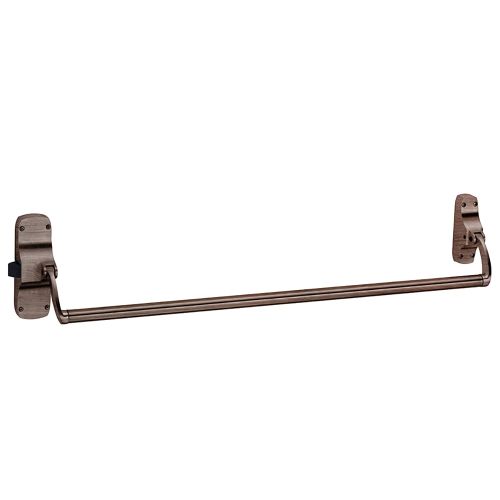

88EO US10B Von Duprin Exit Device
Regular Price $2,729.00 -43% Special Price $1,558.80
Availability: 7 available for order
SKU
VON10088EOUS10B
Grade 1 Rim Exit Bar, Wide Stile Crossbar, 48" Device, Exit Only, Less Trim, Hex Key Dogging, Dark Oxidized Satin Bronze Oil Rubbed Finish, Field Reversible
Description
Specifications
| Series | 88 Series Rim Crossbar Devices |
|---|---|
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| Color | Dark Oxidized Satin Bronze Oil Rubbed |
| Base Material | Bronze |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 3 Years |
| Finish Family | Dark Bronze |
| Cylinder Type | Non-Keyed |
| Door Thickness | 1-3/4" |
Details
UL listed for accident hazard installations.
- Device Functions: Ships EO, DT, NL, TP, L, K
- Crossbar Length: 42" (1067 mm) field sizeable Device centerline 39 13/16"
- Crossbar centerline to finished floor: 36 13/16" (935 mm) at center
- Lock stile case: 8 1/4" X 2 3/4" x 15/16" (210 mm x 70 mm x 24 mm)
- Hinge stile case: 6" X 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
- Crossbar tubing: 1" (25 mm) outside diameter
- Projection: Neutral – 4 3/4" (121 mm), Depressed – 4" (102 mm)
- Latch bolt: 3 /4" (19 mm), throw
- Fasteners: All necessary mounting fasteners are included.
