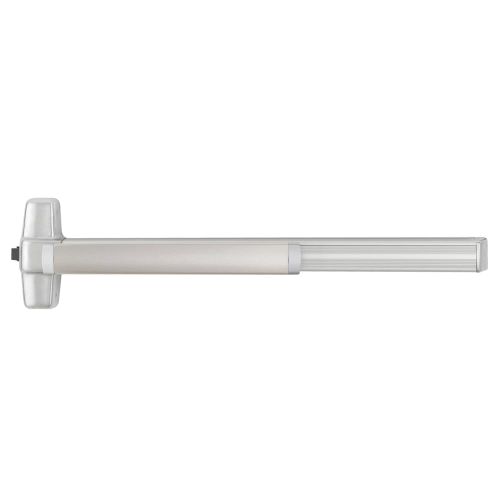

99L-06-F 3 26D RHR Von Duprin Exit Device

Regular Price $3,564.00 -46% Special Price $1,916.01

Availability: 162 available for order

SKU

VON10099L06F326DRHR

Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36" Device, Classroom Function, 06 Lever with Escutcheon, Less Dogging, Satin Chrome Finish, Field Reversible

Description

98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1

Specifications

More Information
Series	99 Series Rim Exit Device
Vendor	Allegion
Manufacturer	Von Duprin
Color	Satin Chrome
ANSI	A156.3
BAA Qualified	Yes
Fire Rating	Yes {Variable}
Grade	Grade 1
Installation	Commercial
Limited Warranty	3 Years
Origin	USA
Finish Family	Matte Silver
Cylinder Type	Rim
Handing	Field Reversible
Door Thickness	1-3/4" - 2-1/4"
UL Listing	UL 10C

Details

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
Latch bolt: Deadlocking, 3/4" (19mm) throw
Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.

The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
