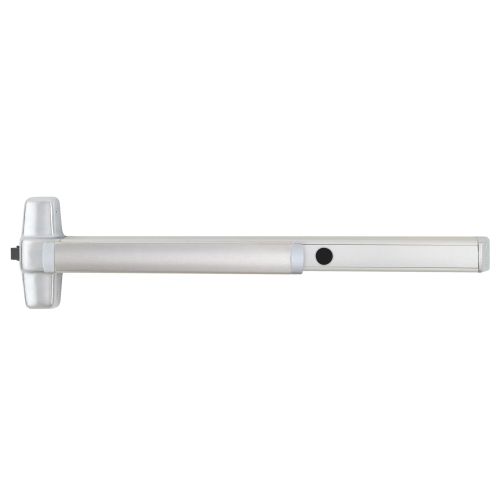

CD98EO 3 32D Von Duprin Exit Device

Heavy-duty high-performance exit devices with many customizable options.

Specifications:

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
• Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking, 3/4" (19mm) throw
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available

Von Duprin's 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
