The Von Duprin CHEXIT is a delayed egress option available on all 98/99, 98/99XP and 33A/35A series exit devices. It is commonly used in behavioral health, memory care, and maternity applications to prevent patient abduction or elopement and in retail stores for asset protection. All control inputs, auxiliary locking, local alarm and remote signaling outputs are self-contained. The CHEXIT can easily be integrated with access control, fire prevention and infant protection systems.

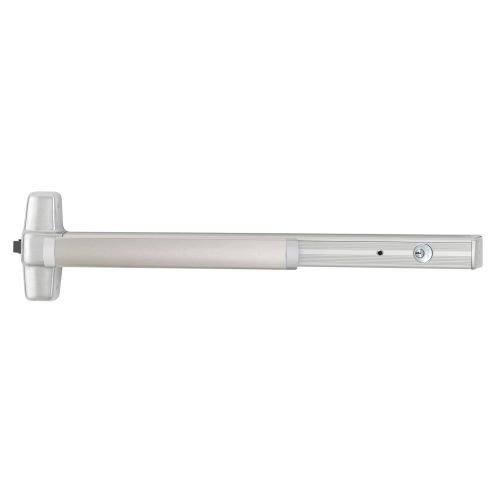

CXA99EO 3 26D Von Duprin Exit Device
Regular Price $5,350.00 -46% Special Price $2,876.16
Availability: 32 available for order
SKU
VON100CXA99EO326D
Grade 1 Grade 1 Delayed Egress Exit Device, Rim Latch, Exit Only, Satin Chromium Plated
Description
Speicfications
| Series | 99 Series Rim Exit Device |
|---|---|
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| Color | Satin Chromium Plated |
| BAA Qualified | Yes |
| Base Material | Brass or Bronze |
| Fire Rating | No |
| Grade | Grade 1 |
| Installation | Commercial |
| Limited Warranty | 1 Year |
| Origin | USA |
| Finish Family | Matte Silver |
| Cylinder Type | Non-Keyed |
| Handing | Non-Handed |
| Door Thickness | 1 3/4" - 2 1/4" |
Details
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
Instructions
- Video: 98/99 Rim Exit Device Installation
- Von Duprin 33/99 LD Kit Installation Instructions
- Von Duprin 33/35 and 98/99 ALK Alarm Kit Installation Instructions
- Von Duprin 33/35 and 98/99 End Cap Retrofit Kit Installation Instructions
- Von Duprin 22/98/99 Series Device with Active Trim Cylinder Tailpiece Guide Retrofit Installation Instructions
- Chexit Wiring Instructions - 2021
- Von Duprin 98/99 Rim Installation Instructions
- Von Duprin 98/99 Center Case Kit Less Cover Installation Instructions
- Von Duprin Pneumatic Exit Device Installation Instructions
- QEL Conversion Kit for 98/99 Series Installation Instructions
- QEL 98/99 Baseplate Conversion Series Installation Instructions
- Video: 98/99 EL - How to Convert to QEL
- Chexit Wiring Instructions - 2016
